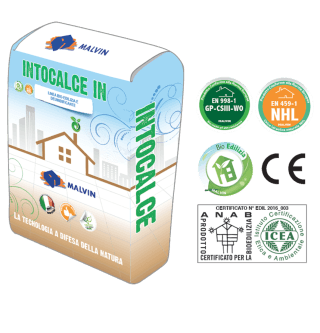

INTOCALCE IN

Intocalce IN
Scarica la Certificazione

Eco-compatible bio-mortar based on natural hydraulic lime NHL 3,5 or NHL 5 in compliance with EN 459-1. Cement-free, with a super fluid consistency specifically for consolidation with injection of walls in tuff, bricks, stones, etc. Resistant to sulphates, therefore compatible with mortars and historic walls. The characteristics of NHL natural hydraulic lime are such as to ensure a very slow and constant hydraulic hardening that allows to obtain mortars with high durability and breathability. It does not form vapor barriers and does not contain solvents. Recyclable as inert at the end of life. Specifically for historical conservation restoration, thanks to the natural origin of its components that respect the nature of the original materials of the structures of historical interest. ANAB-ICEA certificate according to UNI EN 14024 type I environmental labelling.


PACKAGING:25 kg sacks - 70 bags sacks - 17.50 ql

USE:Indoor / Outdoor

COLOUR: Hazelnut

GRANULOMETRY:≤ 0.3 mm

YIELD:1.8 / 1.9 kg per lt of volume to be filled

RESISTANCE COEFFICIENT TO STEAM TRANSFER EN 1015-19:μ ≤ 20

CAPILLARY WATER ABSORPTION EN 1015-18:"W0" class

THERMAL CONDUCTIVITY EN 1745:λ 10, dry, mat = 0.50 W / mK

COMPRESSION RESISTANCE TO 28 days EN 1015-11:≥ 5 N / mm² (CSIII class)

INTOCALCE R

Intocalce R
Scarica la Certificazione

Eco-compatible bio-mortar based on natural hydraulic lime NHL 3,5 or NHL 5 in compliance with EN 459-1. Cement-free, with a super fluid consistency specifically for consolidation with injection of walls in tuff, bricks, stones, etc. Resistant to sulphates, therefore compatible with mortars and historic walls. The characteristics of NHL natural hydraulic lime are such as to ensure a very slow and constant hydraulic hardening that allows to obtain mortars with high durability and breathability. It does not form vapor barriers and does not contain solvents. Available fibre-reinforced with a special polypropylene fibre composition specially designed type "FR". Recyclable as inert at the end of life. Specifically for historical conservation restoration, thanks to the natural origin of its components that respect the nature of the original materials of the structures of historical interest. ANAB-ICEA certificate according to UNI EN 14024 type I environmental labelling.



PACKAGING:25 kg sacks - 70 bags sacks - 17.50 ql

USE:Indoor / Outdoor

COLOR:Hazelnut

GRANULOMETRY:≤ 1.3 mm

YIELD:7/8 kg / m2 as a rough coat

EN 1015-19 STEAM PASSAGE RESISTANCE COEFFICIENT:μ ≤ 8

CAPILLARY WATER ABSORPTION EN 1015-18:"W0" class

THERMAL CONDUCTIVITY EN 1745:λ 10, dry, mat = 0.47 W / mK

COMPRESSION RESISTANCE TO 28 days EN 1015-11:≥ 6 N / mm² (CSIV class)

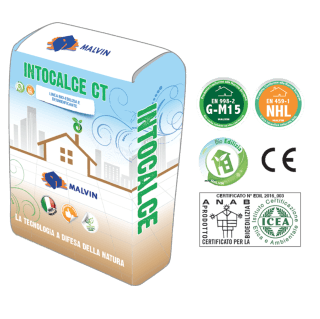

INTOCALCE CT

Intocalce CT
Scarica la Certificazione

Eco-compatible bio-mortar with high resistance, pourable, reinforced fiber, based on NHL 5 natural hydraulic lime according to EN 459-1 and metacaolini, for the consolidation of ancient masonry structures, grouting and concrete reinforced in form crates. The characteristics of NHL natural hydraulic lime are such as to ensure a very slow and constant hydraulic hardening that allows to obtain mortars with high durability and breathability. It does not form vapor barriers and does not contain solvents. Recyclable as inert at the end of life. Specific for the historical conservation restoration, thanks to the natural origin of its components that respect the nature of the original materials of the structures of historical interest. Available "I" type water-repellent. ANAB-ICEA certificate according to UNI EN 14024 type I environmental labeling


PACKAGING:Loose in silo - 25 kg sacks - 70 bags sacks - 17.50 ql
USE:Indoor / Outdoor
COLOR: Hazelnut
GRANULOMETRY:≤ 3.0 mm
SURRENDER:17/18 kg / m² per cm of thickness
RESISTANCE COEFFICIENT TO STEAM PASSAGE EN 1015-19:15 <μ <35
CAPILLARY WATER ABSORPTION EN 1015-18:0.55 Kg / (m² • min⁰ ' ⁵) • Type "I": ≤0.40 Kg / (m² • min⁰ ' ⁵)
THERMAL CONDUCTIVITY EN 1745:λ 10, dry, mat = 0.67 W / mK
COMPRESSION RESISTANCE TO 28 days EN 1015-11:≥17.50 N / mm² (M15)

INTOCALCE ST 10

Intocalce ST 10
Scarica la Certificazione

High-resistance eco-compatible bio-mortar, with CSIV compression resistance class according to EN 998-1, M10 according to EN 998-2 and R1 according to EN 1504-3. Based on NHL natural hydraulic lime according to EN 459-1 and metacaolini, with high breathability. Specifically for the consolidation of masonry structures, for the construction of reinforced concrete with the structural reinforcement system MALVIN NET, which uses pre-formed networks, connectors and accessories in GFRP (Glass Fibre Reinforced Polymer) (*FIBRE NET ), or FRP (Fibre Reinforced Polymer) AR GLASS (alkaline-resistant) nets and AISI 304 stainless steel cold drawn or electro-welded mesh. Ideal for restoration and reinforcement of masonry work (kitchens and shafts), remapping of mortar in the connections or for the lodging of load-bearing walls, to be applied byplastering machine or by hand. The characteristics of NHL natural hydraulic lime are such as to ensure a very slow and constant hydraulic hardening that allows to obtain mortars with high durability and breathability, the addition of metakaolini combined with an appropriate granulometric curve, improves and enhances the structural performance. It does not form vapor barriers and does not contain solvents. Recyclable as inert at the end of life. Specifically for historical conservation restoration, thanks to the natural origin of its components that respect the nature of the original materials of the structures of historical interest. Available fibre-reinforced with a special polypropylene fibre composition specially designed type "FR" and water-repellent type "I". ANAB-ICEA certificate according to UNI EN 14024 type I environmental labelling.




PACKAGING: Loose in silo - 25 kg sacks - 70 bags sacks - 17.50 ql

USE: Indoor / Outdoor

COLOR: Brown

GRANULOMETRY: ≤ 1.3 mm²

YIELD: As plaster 14 kg / m² per cm of thickness • As mortar 15/16 kg / sqm of masonry with bricks of 8 cm


TECHNICAL DATA ACCORDING TO UNI EN 998-1 STANDARD

COMPRESSION RESISTANCE TO 28 GG EN 1015-11 TYPE 10: 11.5N / mm² (CSIV)

COEF. OF RESIST.AL PASS. OF THE VAPOR EN 1015-19: 20 ≤ μ

ASSORB. CAPILLARY WATER EN 1015-18: W0 - TYPE "I": W1

THERMAL CONDUCTIVITY EN 1745: λ 10, dry, mat = 0.47 W / mK


 TECHNICAL DATA ACCORDING TO UNI EN 998-2 STANDARD

COMPRESSION RESISTANCE TO 28 GG EN 1015-11: M10 (11.5N / mm²)

COEF. OF RESIST.AL PASS. OF THE VAPOR EN 1015-19: 5 <μ <20

ASSORB. CAPILLARY WATER EN 1015-18:> 0.55 Kg (m² • min⁰ '⁵)

TYPE "I": ≤0.40 Kg (m² • min⁰ '⁵)

THERMAL CONDUCTIVITY EN 1745: λ 10, dry, mat = 0.47 W / mK


TECHNICAL DATA ACCORDING TO UNI EN 1504-3

COMPRESSION RESISTANCE 28 days EN 12190 TYPE 10:10 MPa (Class R1)

COMPRESSION RESISTANCE 28 days EN 12190 TYPE 15:15 MPa (Class R1)

CONTENT OF ION CHLORIDE "C1": ≤ 0.5%

EN 1542 ADHERENCE BOND: ≥ 0.8 N / mm²

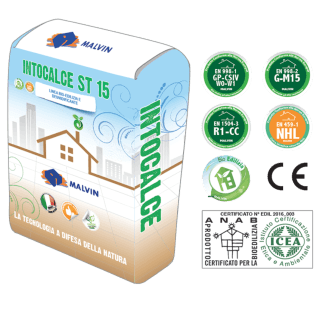

INTOCALCE ST 15

Intocalce ST 15
Scarica la Certificazione

High-resistance eco-compatible bio-mortar, with CSIV compression resistance class according to EN 998-1, M10 according to EN 998-2 and R1 according to EN 1504-3. Based on NHL natural hydraulic lime according to EN 459-1 and metacaolini, with high breathability. Specifically for the consolidation of masonry structures, for the construction of reinforced concrete with the structural reinforcement system MALVIN NET, which uses pre-formed networks, connectors and accessories in GFRP (Glass Fibre Reinforced Polymer) (*FIBRE NET ), or FRP (Fibre Reinforced Polymer) AR GLASS (alkaline-resistant) nets and AISI 304 stainless steel cold drawn or electro-welded mesh. Ideal for restoration and reinforcement of masonry work (kitchens and shafts), remapping of mortar in the connections or for the lodging of load-bearing walls, to be applied by plastering machine or by hand. The characteristics of NHL natural hydraulic lime are such as to ensure a very slow and constant hydraulic hardening that allows to obtain mortars with high durability and breathability, the addition of metakaolini combined with an appropriate granulometric curve, improves and enhances the structural performance. It does not form vapor barriers and does not contain solvents. Recyclable as inert at the end of life. Specifically for historical conservation restoration, thanks to the natural origin of its components that respect the nature of the original materials of the structures of historical interest. Available fibre-reinforced with a special polypropylene fibre composition specially designed type "FR" and water-repellent type "I". ANAB-ICEA certificate according to UNI EN 14024 type I environmental labelling.


Package: Bulk in silo-25 kg sacks-70 sacks-17.50 QL footboards

Usage: Indoor/outdoor

Colour: Hazelnut

Particle size: ≤ 1.3 mm

Yield: As plaster 14 kg/mq per cm thick • As mortar 15/16 kg/sqm of masonry with bricks 8 cm



Technical data according to Norm UNI EN 998-1

Compression resistance at 28 days EN 1015-11: 17, 5n/mm ² (CSIV)

Overhead Rate. of RESIST. to the PASS. Steam EN 1015-19: 20 ≤ μ

Absorption. Capillary water EN 1015-18: W0 • Type "I": W1

Thermal conductivity EN 1745: λ 10, dry, mat = 0.47 W/MK

Fire resistance according to D. M. of 16/02/2007: REI 120


Technical data according to Norm UNI EN 998-2

Compression resistance at 28 days EN 1015-11: M15 (17, 5n/mm)

Overhead Rate. of RESIST. to the PASS. Steam EN 1015-19: 5 < μ < 20

Absorption. Capillary water EN 1015-18: > 0.55 Kg (m² • min ⁰ ' ⁵)

Type "I": ≤ 0.40 Kg (m² • min ⁰ ' ⁵)

Thermal conductivity EN 1745: λ 10, dry, mat = 0.47 W/MK

Fire resistance according to D. M. of 16/02/2007: REI 120


Technical data according to Norm UNI EN 1504-3

Compression resistance at 28 days EN 12190: 15 MPa (class R1)

Chloride ion Content "C1": ≤ 0.5%

Adhesion Bond EN 1542: ≥ 0.8 N/mm ²

INTOCALCE RS 10

Intocalce RS 10

High strength, eco-compatible bio-mortar: available type 10 with Csiv compression resistance class in accordance with EN 998-1, M10 according to En 998-2 and R1 according to En 1504-3. Based on natura hydraulic lime, in accordance with En 459-1, metacaolini and reactive inorganic compounds with high breathability. Specifically for the consolidation of masonry structures; reinforced concrete with the structural reinforcement system Malvin NET, which uses preformed nets, connectors and accessories in GFRP (Glass Fiber Reinforced Polymer) (* FIBRE NET), AR GLASS (Fiber Reinforced Polymer) FRP (alkaline resistant) and connectors in stainless steel AISI 304 cold drawn or with electro-welded mesh both on the wall and on the vaults for restoration and reinforcement of masonry works (Cuci and Scuci ), remaking of entrapment mortar in the connections or for entrapment of bearing walls, to be applied with plasters or by hand. The characteristics of NHL natural hydraulic lime are such as to ensure a very slow and constant hydraulic hardening that allows to obtain mortars with high durability and breathability, the addition of metakaolini combined with an appropriate granulometric curve, improves and enhances the structural performance. It does not form vapor barriers and does not contain solvents. Recyclable as inert at the end of life. Specifically for historical conservation restoration, thanks to the natural origin of its components that respect the nature of the original materials of the structures of historical interest. Available fibre-reinforced with a special polypropylene fibre composition specially designed type "FR" and water-repellent type "I".



Package:Bulk in silo-25 kg sacks-70 sacks-17.50 QL footboards

Usage:Indoor/outdoor

Color:Grey

Particle size:≤ 1.3 mm

Yield:As plaster 14 kg/mq per cm thick • As mortar 15/16 kg/sqm of masonry with bricks 8 cm


Technical data according to Norm UNI EN 998-1

Compression resistance at 28 days EN 1015-11 Type 10:11, 5n/mm ² (CSIV)

Overhead Rate. of RESIST. to the PASS. Steam EN 1015-19:20 ≤ μ

Absorption. Capillary water EN 1015-18:W0 – Type "I": W1

Thermal conductivity EN 1745:λ 10, dry, mat = 0.47 W/MK


Technical data according to Norm UNI EN 998-2

Compression resistance at 28 days EN 1015-11:M10 (11, 5n/mm ²)

Overhead Rate. of RESIST. to the PASS. Steam EN 1015-19:5 < μ < 20

Absorption. Capillary water EN 1015-18:> 0.55 Kg (m² • min ⁰ ' ⁵)

Type "I": ≤ 0.40 Kg (m² • min ⁰,⁵)

Thermal conductivity EN 1745:λ 10, dry, mat = 0.47 W/MK


Technical data according to Norm UNI EN 1504-3

Compression resistance at 28 days EN 12190 type 10: 10 MPa (class R1)

Chloride ion Content "C1":≤ 0.5%

Adhesion Bond EN 1542:≥ 0.8 N/mm ².

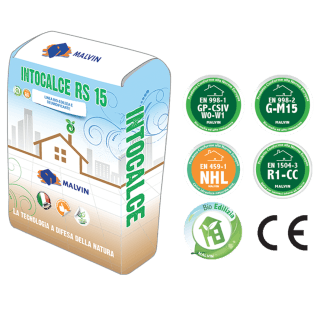

INTOCALCE RS 15

Intocalce RS 15

High strength, eco-compatible, bio-mortar: available type 10 with Csiv compression resistance class in accordance with EN 998-1, M10 according to En 998-2 and R1 according to En 1504-3. Based on natural hydraulic lime According to En 459-1, metacaolini and reactive compounds Inorganic, with high breathability, specifically for the consolidation of masonry structures, for the realization of reinforced concrete with the structural reinforcement system Malvin NET, which uses preformed nets, connectors and accessories in GFRP (Glass Fiber Reinforced Polymer) (* FIBRE NET), AR GLASS (Fiber Reinforced Polymer) FRP (alkaline resistant) and connectors in stainless steel AISI 304 cold drawn or with electro-welded mesh for restoration and reinforcement of masonry works, remaking of entrapment mortar in connections or for entrapment of bearing walls, to be applied with machinery or by hand. The characteristics of the natural hydraulic lime in NHL are such as to guarantee a very slow and steady hydraulic hardening that allows to obtain mortars with high durability and breathability, the addition of Metacaolini combined with an appropriate granulometric curve, improves and enhances structural performance. Does not form barriers to steam and does not contain solvents. Recyclable as inert at the end of life. Specifically for the preservation of historical artefacts, thanks to the natural origin of its components that respect the nature of the materials originating from the structures of historical interest. Available fibre-reinforced with a special composition of polypropylene fibres specially studied "FR" type and repellent type "I".


Package: Bulk in silo-25 kg sacks-70 sacks-17.50 QL footboards

Usage: Indoor/outdoor

Color: Grey

Particle size: ≤ 1.3 mm

Yield: As plaster 14 kg/mq per cm thick • As mortar 15/16 kg/sqm of masonry with bricks 8 cm


Technical data according to Norm UNI EN 998-1

Compression resistance at 28 days EN 1015-11 Type 11: 17, 5n/mm ² (CSIV)

Overhead Rate. of RESIST. to the PASS. Steam EN 1015-19: 20 ≤ μ

Absorption. Capillary water EN 1015-18: W0 - Type "I": W1

Thermal conductivity EN 1745: λ 10, dry, mat = 0.47 W/MK


Technical data according to Norm UNI EN 998-2

Compression resistance at 28 days EN 1015-11: M15 (17, 5n/mm ²)

Overhead Rate. of RESIST. to the PASS. Steam EN 1015-19: 5 < μ < 20

Absorption. Capillary water EN 1015-18: > 0.55 Kg (m² • min ⁰ ' ⁵)

Type "I": ≤ 0.40 Kg (m² • min ⁰ ' ⁵)

Thermal conductivity EN 1745: λ 10, dry, mat = 0.47 W/MK


Technical data according to Norm UNI EN 1504-3

Compression resistance at 28 days EN 12190 type 15: 15 MPa (class R1)

Chloride ion Content "C1": ≤ 0.5%

Adhesion Bond EN 1542: ≥ 0.8 N/mm ²

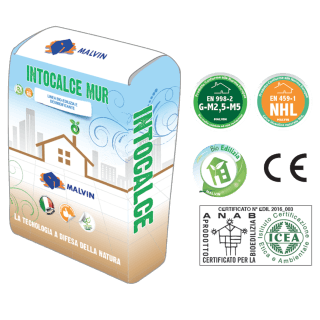

INTOCALCE MUR

Intocalce MUR
Scarica la Certificazione

Eco-compatible natural hydraulic lime-based bio-mortar - NHL 3.5 or NHL 5 a standard EN 459-1. For the construction of internal and external masonry, available with compression resistance class M 2.5 and M 5. The characteristics of the natural hydraulic lime in NHL are such as to guarantee a very slow and steady hydraulic hardening that allows to obtain mortars with high durability and breathability. It does not form barriers to steam and does not contain solvents. Recyclable as inert at the end of life. Specific for the preservation of historical conservatively, thanks to the natural origin of its components that respect the nature of the materials originating from the structures of historical interest.

Anab-ICEA Certified according to UNI EN 14024 environmental labelling type I.


Package: Bulk in silo-25 kg sacks-70 sacks-17.50 QL footboards

Usage: Indoor/outdoor

Color: Hazelnut

Particle size: ≤ 1.3 mm

Yield: 15/16 kg/sq m of masonry with 8 cm bricks

Vapour-passage resistance coefficient EN 1015-19: 5 < μ < 20

Capillary water absorption EN 1015-18: 0.55 Kg/(m² • min ⁰ ' ⁵)

Thermal conductivity EN 1745: λ 10, dry, mat = 0.43 W/MK

Compression resistance at 28 days EN 1015-11: Type M2 5, 5: > 2.5 n/mm ²

M5 Type: > 5n/mm ²

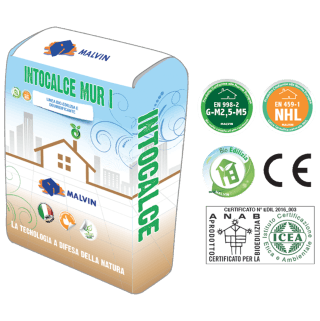

INTOCALCE MUR I

Intocalce MUR I
Scarica la Certificazione

Eco-friendly hydraulic lime based bio-mortar: l NHL 3.5 or NHL 5 according to EN 459-1. For the construction of internal and external masonry in exposed brick, available with compression resistance class M 2.5 and M5. The characteristics of the natural hydraulic lime in NHL are such as to guarantee a very slow and steady hydraulic hardening that allows to obtain mortars with high durability and breathability. It does not form barriers to steam and does not contain solvents. Recyclable as inert at the end of life. Specific for the preservation of historical artefacts, thanks to the natural origin of its components that respect the nature of the materials originating from the structures of historical interest.

Anab-ICEA Certified according to UNI EN 14024 environmental labelling type I.



Package: Bulk in silo-25 kg sacks-70 sacks-17.50 QL footboards

Usage: Indoor/outdoor

Color: Hazelnut/white/colored

Particle size: ≤ 1.3 mm

Yield: 40/50 kg/sqm with full bricks/perforated, face-View 5.5 x 12 x 25 with escape from CM 1

Vapour-passage resistance coefficient EN 1015-19: 5 < μ < 20

Capillary water absorption EN 1015-18: < 0.40 Kg/(m² • min ⁰ ' ⁵)

Thermal conductivity EN 1745: λ10, dry, mat = 0.43 W/MK

INTOCALCE

Intocalce
Scarica la Certificazione

Eco-compatible Bio-plaster based on natural hydraulic lime, NHL 3.5 or NHL 5 according to EN 459-1. For traditional background plastering for indoor and outdoor use of new and old buildings for mechanical and manual application. The characteristics of the natural hydraulic lime in NHL are such as to guarantee a very slow and steady hydraulic hardening that allows to obtain mortars with high durability and breathability. It does not form barriers to steam and does not contain solvents. Recyclable as inert at the end of life. Specifically for the preservation of historical artefacts, thanks to the natural origin of its components that respect the nature of the materials originating from the structures of historical interest. Available fibre-reinforced with a special composition of polypropylene fibres specially studied "FR" type. Anab-ICEA Certified according to UNI EN 14024 environmental labelling type I.



Package: Bulk in silo-25 kg sacks-70 sacks-17.50 QL footboards

Usage: Indoor/outdoor

Color: Hazelnut

Particle size: ≤ 1.3 mm

Yield: 14 kg/sq m per cm of thickness

Vapour-passage resistance coefficient EN 1015-19: μ ≤ 5

Capillary water absorption EN 1015-18: Class "W0"

Thermal conductivity EN 1745: λ10, dry, mat = 0.40 W/MK

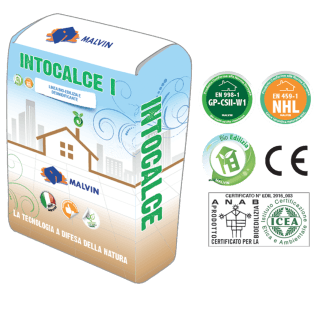

INTOCALCE I

Intocalce I
Scarica la Certificazione

Eco-compatible natural hydraulic lime based bio-mortar NHL 3.5 or NHL 5 a standard EN 459-1. free from cement, with super fluid consistency specific for the consolidation with injection of masonry in tuff, bricks, stones, etc. resistant to sulphates, therefore compatible With mortars and historical walls. The characteristics of the natural hydraulic lime in NHL are such as to guarantee a very slow and steady hydraulic hardening that allows to obtain mortars with high durability and breathability. It does not form barriers to steam and does not contain solvents. Recyclable as inert at the end of life. Specific for the preservation of historical conservatively, thanks to the natural origin of its components that respect the nature of the materials originating from the structures of historical interest. Anab-ICEA Certified according to UNI EN 14024 environmental labelling type I.



Package: 25 kg sacks-70 sacks-17.50 QL footboards

Usage: Indoor/outdoor

Color: Hazelnut

Particle size: ≤ 0.3 mm

Yield: 1.8/1.9 kg per LT volume to be filled

Vapour-passage resistance coefficient EN 1015-19: μ ≤ 20

Capillary water absorption EN 1015-18: Class "W0"

Thermal conductivity EN 1745: λ 10, dry, Mat = 0.50 W/MK

Compression resistance at 28 days EN 1015-11: ≥ 5 N/mm ² (class CSIII)

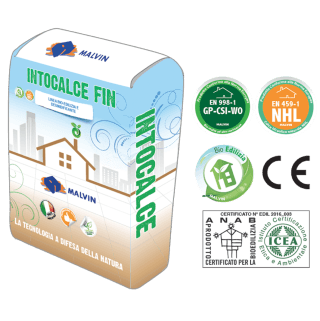

INTOCALCE FIN

Intocalce FIN
Scarica la Certificazione

Eco-compatible Bio-mortar based on natural hydraulic lime in NHL 3.5 or NHL 5 according to EN 459-1. For indoor and outdoor use. For the preparation of internal and external walls by plastering, by machine or by hand, as old walls or in mixed masonry, solid bricks, natural stone (tuff, sandstones, etc.). It does not form barriers to steam and does not contain solvents. Recyclable as inert at the end of life. Specific for the preservation of historical conservatively, thanks to the natural origin of its components that respect the nature of the materials originating from the structures of historical interest. Available fibre-reinforced with a special composition of polypropylene fibres specially studied "FR" type.

Anab-ICEA Certified according to UNI EN 14024 environmental labelling type I.


Package: 25 kg sacks-70 sacks-17.50 QL footboards

Usage: Indoor/outdoor

Color: Hazelnut

Particle size: ≤ 1.3 mm

Yield: 7/8 kg/sqm as Rinzaffo

Vapour-passage resistance coefficient EN 1015-19: μ ≤ 8

Capillary water absorption EN 1015-18: Class "W0"

Thermal conductivity EN 1745: λ 10, dry, mat = 0.47 W/MK

Compression resistance at 28 days EN 1015-11: ≥ 6 N/mm ² (Csiv Class)

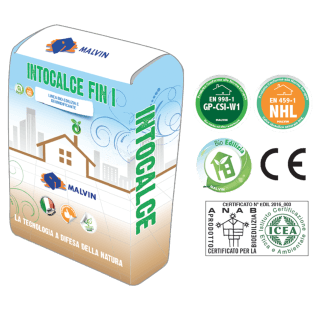

INTOCALCE FIN I

Intocalce FIN I
Scarica la Certificazione

Eco-compatible water-repellent eco-finish based on NHL 3.5 or NHL 5 natural hydraulic lime in compliance with EN 459-1 standard. For smooth finish in a domestic setting or fine, medium or coarse sponge, for interiors and exteriors. Recyclable as inert at the end of life. Specifically for historical restoration, thanks to the natural origin of its components that respect the weaving of the original materials of the structures of historical interest. Fiber-reinforced "FR" type available.
ANAB-ICEA certificate according to UNI EN 14024 type I environmental labeling


PACKAGING:25 kg sacks - 70 bags sacks - 17.50 ql
USE:Indoor / Outdoor
COLOR:Hazelnut
GRANULOMETRY:type B / F: ≤ 0.6 mm • type M / SF: ≤ 1.3
SURRENDER:type B: 1,5 / 2 kg / sq m • type F: 1,5 / 2,5 kg / sq m • type M: 2 / 3,2 kg / sq m - type SF: 2,5 / 3,2 kg / mq for 2 hands
RESISTANCE COEFFICIENT TO STEAM PASSAGE EN 1745:type B/F: μ ≤ 6

type M/SF: μ ≤ 7
CAPILLARY WATER ABSORPTION EN 1015-18: Class "W1"
THERMAL CONDUCTIVITY EN 1745 λ 10, dry, mat :
type B / F = 0.35 W / mK • type M / SF = 0.39 W / mK

INTOCALCE PLUS

Intocalce PLUS
Scarica la Certificazione

Eco-compatible finish with natural hydraulic lime based NHL 3.5 or NHL 5 according to En 459-1 and siliceous sands. For smooth finish both indoors and outdoors. Recyclable as inert at the end of life. Specific for historical restoration, thanks to the natural origin of its components that respect the nature of the materials originating from the structures of historical interest. Available fibre-type "FR". Certificate Anab-Icea according to the UNI EN 14024 Environmental labelling type I.


Package: 25 kg sacks-70 sacks-17.50 QL footboards

Usage: Indoor/outdoor

Color: Hazelnut

Particle size: ≤ 0.6 mm

Yield: 1.5/2.5 kg/sq. m

Vapour resistance coefficient EN1015-19: μ ≤ 6

Capillary water absorption EN 1015-18: Class "W0"

Thermal conductivity EN 1745: λ 10, dry, Mat = 0.35 W/MK

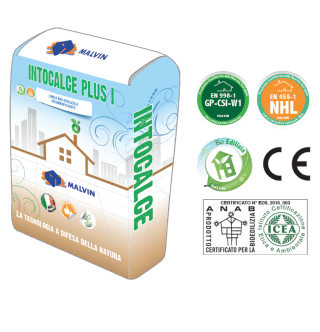

INTOCALCE PLUS I

Intocalce PLUS I
Scarica la Certificazione

Eco-compatible finish with natural hydraulic lime based NHL 3.5 or NHL 5 according to En 459-1 and siliceous sands. For smooth finish both indoors and outdoors. Recyclable as inert at the end of life. Specific for historical restoration, thanks to the natural origin of its components that respect the nature of the materials originating from the structures of historical interest. Available fibre-type "FR". Certificate Anab-Icea according to the UNI EN 14024 Environmental labelling type I.


Package: 25 kg sacks-70 sacks-17.50 QL footboards

Usage: Indoor/outdoor

Color: Hazelnut

Particle size: ≤ 0.6 mm

Yield: 1.5/2.5 kg/sq. m

Vapour-passage resistance coefficient EN 1015-19: μ ≤ 6

Capillary water absorption EN 1015-18: Class "W1"

Thermal conductivity EN 1745: λ 10, dry, Mat = 0.35 W/MK

INTOCALCE MAX

Intocalce MAX
Scarica la Certificazione

Eco-compatible and fibro-armed high elasticity Bio-Finish, based on natural hydraulic lime NHL 3.5 or NHL 5 according to EN 459-1. high breathability, suitable for the finishing of internal and external surfaces of old and new buildings with smooth finish. It is applied directly on plaster based on hydraulic lime and on All lime and cement plasters, old and new, on plasters for renovation and historical conservation. Specifically for the finishing of the system thermoinsulating plasters (intocork). It does not form barriers to steam and does not contain solvents. Recyclable as inert at the end of life. Specific for the preservation of historical conservatively, thanks to the natural origin of its components that respect the nature of the materials originating from the structures of historical interest. Anab-ICEA Certified according to UNI EN 14024 environmental labelling type I.


Package: 25 kg sacks-70 sacks-17.50 QL footboards

Usage: Indoor/outdoor

Color: Hazelnut

Particle size: Type B/F: ≤ 0.6 mm • Type M/SF: ≤ 1.3

Yield: Type B: 1, 5/2 kg/sqm • Type F: 1.5/2.5 kg/sqm • Type M: 2/3.2 kg/MQ type SF: 2.5/3.2 kg/sqm for 2 hands

Vapour-passage resistance coefficient EN 1015-19: Type B/F: μ ≤ 6 • Type M/SF: μ ≤ 7

Capillary water absorption EN 1015-18: Class "W1"

Thermal conductivity EN 1745 λ 10, dry, Mat: type B/F = 0.35 w/mk • Type M = 0.39 w/mk • Type SF = 0.43 w/mk

Flexibility: Excellent

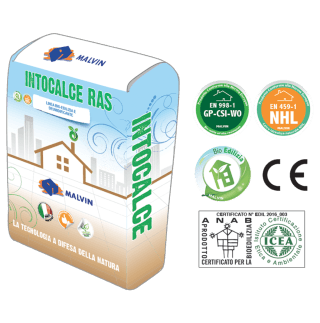

INTOCALCE RAS

Intocalce RAS
Scarica la Certificazione

Eco-compatible with natural hydraulic lime based NHL 3.5 According to EN 459-1, with high breathability, suitable for the smooth internal and external finishing of old and new buildings, of plasters based on Natural and dehumidifying hydraulic lime. It does not form barriers to steam and does not contain solvents. Recyclable as inert at the end of life. Specific for the preservation of historical conservatively, thanks to the natural origin of its components that respect the nature of the materials originating from the structures of historical interest.

Anab-ICEA Certified according to UNI EN 14024 environmental labelling type.



Package: 20 kg sacks-70 sacks-14.00 QL Footboards

Usage: Indoor/outdoor

Color: Hazelnut

Particle size: ≤ 90 micron

Yield: 1 kg/sqm per mm thickness

Vapour-passage resistance coefficient EN 1015-19: μ ≤ 10

Capillary water absorption EN 1015-18: Class "W0"

Thermal conductivity EN 1745: λ 10, dry, Mat = 0.18 W/MK

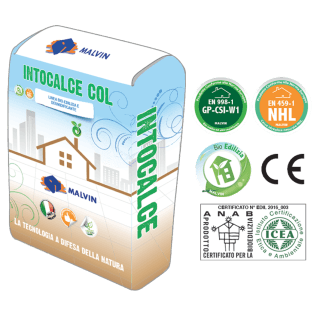

INTOCALCE COL

Intocalce COL
Scarica la Certificazione

Eco-compatible mineral coating with natural hydraulic lime based NHL 3.5 or NHL 5 a standard EN 459-1, coloured with inorganic pigments and coloured Earths, hydrofuge in the nuved effect mass. suitable for the finishing of internal and external surfaces of buildings Old and new with sponge finish or with plastic spatula. For the decoration and protection of internal and external surfaces of any type of building, in particular those of historical and architectural interest thanks to its effects and the natural origin of its components, to be applied by hand to obtain a Hydrofugo mineral coating, pigmented with inorganic pigments and coloured Earths, of excellent quality. To be applied on premised plasters and traditional new and old lime and cement, plasters made of natural hydraulic lime plasters for renovation and restoration of historical conservatively, lightened heat-insulating plasters, old mineral coatings , also on reinforced concrete walls by hand application. It does not form barriers to steam and does not contain solvents. Recyclable as inert at the end of life. Specific for the preservation of historical conservatively, thanks to the natural origin of its components that respect the nature of the materials originating from the structures of historical interest. Anab-ICEA Certified according to UNI EN 14024 environmental labelling type I.


Package: 25 kg sacks-70 sacks-17.50 QL footboards

Usage: Indoor/outdoor

Color: Color Chart

Particle size: Type F: ≤ 0.6 mm • Type M/SF: ≤ 1.3

Yield: Type F: 3/4 kg/sqm • Type M: 4/5 kg/sqm • Type SF: 4/5 kg/sqm for 2 hands

Steam flow coefficient EN 1015-19: type F: μ ≤ 6 • Type M/SF: μ ≤ 7

Capillary water absorption EN 1015-18: Class "W1"

Thermal conductivity EN 1745 λ 10, dry, mat: Type F = 0.35 w/mk • Type M = 0.39 w/mk • Type SF = 0.43 w/mk

Warnings: Minimum order 5.00 QL

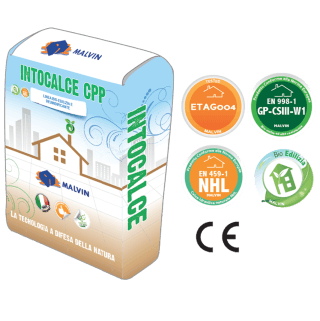

INTOCALCE CPP

Intocalce CPP

Bio-adhesive and eco-friendly mineral water-based, natural hydraulic lime base NHL 3.5 According to EN 459-1 for the gluing and shaving inside and outside of insulating panels of polystyrene, polystyrene (also embossed), polyurethane, cork, cement and wood . Suitable, for its adhesion and elasticity qualities, as a spur on concrete surfaces, rustic, plastic and/or mineral coatings, traditional or premised plasters based on lime and cement both new and old, even if painted provided that in excellent condition. Storage, on plasters with shrinkage lesions or to standardize surfaces plastered with different mortars, with application in the first hand of malvin net mesh glass fibre plaster rack 4x4mm from minimum 150 GR, ETAG 004 certified. It does not form barriers to steam and does not contain solvents. Recyclable as inert at the end of life. Specific for the preservation of historical conservatively, thanks to the natural origin of its components that respect the nature of the materials originating in the structures of

Historical interest.


Package: 25 kg sacks-70 sacks-17.50 QL footboards

Usage: Indoor/outdoor

Color: Hazelnut

Particle size: ≤ 0.6 mm

Yield: As adhesive gluing points 2/3 kg/MQ/gluing at full surface 4/5 kg/MQ • As a spur 3/4 kg/MQ for two coats

Vapour-passage resistance coefficient EN 1015-19: μ ≤ 10

Capillary water absorption EN 1015-18: Class "W1"

Thermal conductivity EN 1745: λ 10, dry, Mat = 0.35 W/MK

Flexibility: Excellent

Certification: Tested according to ETAG 004

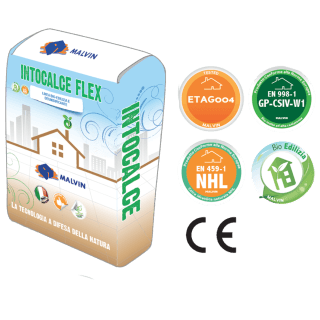

INTOCALCE FLEX

Intocalce FLEX

Eco-compatible premixed bio-smoothing mortar with high elasticity, anticarbonising, thixotropic, water-repellent, fibro-reinforced, with compensated shrinkage based on NHL 3.5 natural hydraulic lime according to EN 459-1. suitable for universal use on any compatible support , to be applied by hand with a sponge finish. It does not form vapor barriers and does not contain solvents. Recyclable as inert at the end of life. Specific for the historical conservation restoration, thanks to the natural origin of its components that respect the nature of the original materials of the structures of historical interest. For external and internal shaving of old and new buildings, obtaining a civil or sponged surface. For external and internal shaving of concrete surfaces, rustic, plastic and / or mineral coatings, of traditional or premixed plasters based on lime and cement, both new and old, even if painted, provided they are in excellent condition, of base-based plasters of natural hydraulic lime, of plasters with shrinkage lesions, of blocks of cement, autoclaved cellular concrete. To uniform plastered surfaces with different mortars. As an adhesive / smoothing agent for coatings in polystyrene panels, polystyrene (also embossed), polyurethane, cork, cement wood. Used as a shave on coatings, it can be used as a decoration for MEHLVIT ELS / PLUS or AGROPOLI ELS / PLUS elastomeric water-based paint. Specific for the finish of the thermal insulating plaster system (INTOSUGHERO).


PACKAGING:25 kg sacks - 70 bags sacks - 17.50 ql
USE:Indoor / Outdoor
COLOR:Hazelnut
GRANULOMETRY:≤ 0.6 mm
SURRENDER:AS ADHESIVE: Bonding at 2/3 kg / sqm points; Bonding to full surface 4/5 kg / sqm
AS RASANTE:3/4 kg / sqm per coat
RESISTANCE COEFFICIENT TO STEAM PASSAGE EN 1015-19:μ ≤ 10
CAPILLARY WATER ABSORPTION EN 1015-18:Class "W1"
THERMAL CONDUCTIVITY EN 1745:λ 10, dry, mat = 0.35 W / mK
FLEXIBILITY:Great
CERTIFICATION:Tested according to ETAG 004

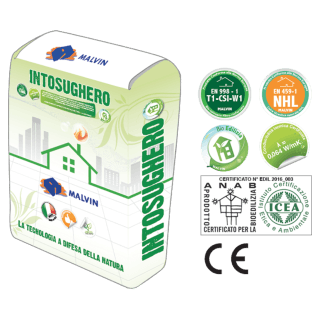

INTOSUGHERO

Intosughero
Scarica la Certificazione

Eco-compatible bio-plaster, fibro-reinforced with a special specially designed fiber composition, water-repellent, based on natural raw materials such as granulated cork and natural hydraulic lime NHL 3.5 in accordance with EN 459-1 for thermal insulating plaster. certified sound-absorbing and dehumidifying and / or thermal protection on beams and pillars in reinforced concrete, in interior and exterior with mechanical and manual application. Use INTOCALCE FLEX or INTOCALCE MAX as finishers. It does not form vapor barriers and does not contain solvents. Recyclable as inert at the end of life. ANAB-ICEA certificate according to the
UNI EN 14024 environmental labeling type I.


PACKAGING:50 lt bags - 55 bags sacks
USE:Indoor / Outdoor
COLOR: Hazelnut
GRANULOMETRY:≤ 3 mm
SURRENDER:1 bag per 1 sq.m. thickness 4 cm
RESISTANCE COEFFICIENT TO STEAM PASSAGE EN 1015-19:μ ≤ 5
CAPILLARY WATER ABSORPTION EN 1015-18:Class "W1"
SPECIFIC HEAT EN 1745:1.00 kj / kg K
CERTIFIED THERMAL CONDUCTIVITY:λ = 0.064 W / mK *
SPECIFIC WEIGHT OF DRY MALTA:400 Kg / mc
*CERTIFICATION:Certified Institute LAPI spa n ° 347.2 DC 0050/12

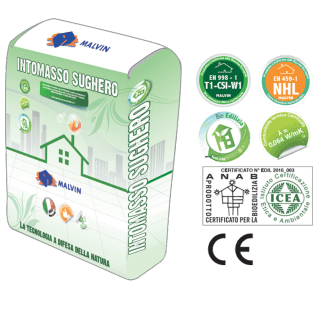

INTOMASSO SUGHERO

Intomasso Sughero
Scarica la Certificazione

Certified eco-compatible bio-mortar, fiber-reinforced with a specially studied special fiber composition, based on natural raw materials such as granulated cork and natural hydraulic lime NHL 3.5 according to EN 459-1 for thermal insulating and sound absorbing screeds. dehumidifying, inside and outside also with the interposition of carpet for the sound insulation of footfall noise, to be applied on floors, flat and inclined roofs, terraces, also for the formation of slopes, for light filling and drowning of systems on floor, etc. To be applied with plastering machine, continuous mixer, glass or hand mixer. It does not form vapor barriers and does not contain solvents. Recyclable as inert at the end of life. ANAB-ICEA certificate according to UNI EN 14024 type I environmental labelling.


PACKAGING: 50 lt bags - 55 bags sacks
USE:Indoor / Outdoor
COLOR:Hazelnut
GRANULOMETRY:≤ 3 mm
SURRENDER:1 bag per 1 sq.m. thickness 4 cm
RESISTANCE COEFFICIENT TO STEAM PASSAGE EN 1015-19:μ ≤ 5
CAPILLARY WATER ABSORPTION EN 1015-18:Class "W0"
SPECIFIC HEAT EN 1745:1.00 kj / kg K
CERTIFIED THERMAL CONDUCTIVITY:λ = 0.068 W / mK *
SPECIFIC WEIGHT OF DRY MALTA:400 Kg / mc
*CERTIFICATION:Certified Institute LAPI spa n ° 366.2 DC 0050/12

INTOCALCE MAS PLUS

Intocalce MAS

INTOCALCE MAS PLUS is an eco-friendly premixed bio-mortar, fibre-reinforced, with amorphous stainless steel fibres, based on natural hydraulic lime NHL according to EN 459-1, with high thermal conductivity, compensated shrinkage, fast drying and increased sliding at a high and constant quality level, produced with a computerised system, for the production of screeds on underfloor heating systems and substrate screeds in interiors. The characteristics of natural hydraulic lime NHL are such as to ensure a very slow and constant hydraulic hardening that allows to obtain screeds with high durability and breathability. It does not form vapour barriers and does not contain solvents. Recyclable as inert at the end of its life. Specific for historical and conservative restoration, thanks to the natural origin of its components that respect the nature of the original materials of the structures of historical interest.


PACKAGING: Bulk in drop silo.

In multilayer paper bags with protective film kg 20 on wood pallets of 14,50 ql. (70 sacs).

USE: Indoor / Outdoor

COLOR: Hazelnut

Grain size EN 1015-1: ≤ 3 mm

YIELD:18/20 kg/mq for each cm of thickness depending on the degree of constipation.

Thermal conductivity EN 13813: λ=2,03 W/mK

MINIM. THICKNESS OF APPLICATION :

Anchored screed cm 3

Floating screed cm 4

Sreed on underfloor heating cm 3 above the embossind

Floating screed on insulating mats >6mm cm 5

Compressive strength at 28 days EN 13892-2: 20 N/mm2 (C20)

INTOCALCE MAS LIGHT

Intocalce MAS

INTOCALCE MAS LIGHT is a premixed eco-friendly mortar based on NHL natural hydraulic lime, lightened, thermo-insulating, with compensated shrinkage and a high and constant quality level, produced with a computerised system, for the production of lightened and thermo-insulating substrate screeds indoors and outdoors. The characteristics of natural hydraulic lime NHL are such as to ensure a very slow and constant hydraulic hardening that allows to obtain screeds with high durability and breathability. It does not form vapour barriers and does not contain solvents. Recyclable as inert at the end of its life. Specific for historical and conservative restoration, thanks to the natural origin of its components that respect the nature of the original materials of the structures of historical interest.


PACKAGING: Bulk in drop silo.

In multilayer paper bags with protective film kg 20 on wood pallets of 14,50 ql. (70 sacs).

USE:Indoor / Outdoor

COLOR: Hazelnut

Grain size EN 1015-1: ≤ 4 mm

YIELD :10 kg/mq for each cm of thickness depending on the degree of constipation.

Thermal conductivity EN 13813: λ= 0,24 W/mK

MINIM. THICKNESS OF APPLICATION :

Anchored screed                                                       cm 5

Anchored screed (SEE APPLICATION)                           cm 3,5

Floating screed                                                          cm 5

Floating screed on insulating mats up to 6mm              cm 6

Floating screed on insulating mats from 7 to 12mm       cm 7

Floating screed on insulating mats from 13 to 20mm     cm 8

Compressive strength at 28 days EN 13892-2: 10 N/mm2 (C7)

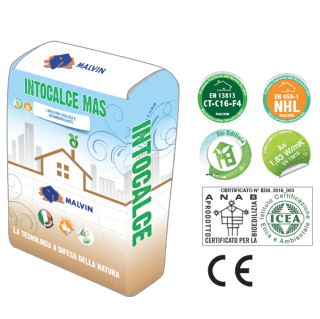

INTOCALCE MAS

Intocalce MAS
Scarica la Certificazione

Pre-mixed Eco-compatible Bio-screed, 3 mm grain, damp earth type, based on natural hydraulic lime, NHL 3.5 According to EN 459-1.  compensated shrinkage with controlled drying, ideal for hand or machine realization, also pressure pump, of Substrate. to be applied directly on any internal and external surface provided that it is stable and not subject to capillary ascent. suitable to receive the subsequent application of any paving such as ceramics, natural stones, parquets and floors. Suitable for the use of screed with insertion of underfloor heating and floating scree on a resilient mattress for the acoustic insulation of footstep noises. Recyclable as inert at the end of life. Specific for the preservation of historical conservatively. Anab-ICEA Certified according to uni en 14024 environmental labelling type I. Anab-Icea certificate according to uni en 14024 environmental labelling type I.


Package: Bulk in silo-25 kg sacks-70 sacks-17.50 QL footboards

Usage: Indoor/outdoor

Color: Hazelnut

Particle size: ≤ 3 mm

Yield: 20 kg/sq m per cm of thickness

Thermal conductivity EN 13813: λ = 1,83 W/MK

Minimum thickness of application: anchored screed cm 3 • Float screed cm 4 • Floor heating on floors 3 cm above the ashlar • Float screing on insulating mats > 6mm cm 5

Compression resistance at 28gg EN 13892-2: ≥ 16 N/mm

INTOSIL

Intosil
Concentrated elastic acrylic-siloxane dispersion, specific for the optimisation of workability, adhesion, flexibility, resistance and water-repellence of highly breathable mortars, specific for recovery operations, conservative and monumental restoration. Elastic acrylic-siloxane dispersion ready-to-use or to dilute clean water, to be mixed with the INTOCALCE and INTOBIO lines in order to obtain an improvement in the characteristics of adhesion to the substrate, resistance, water-repellence, elasticity and as an additive in the production of gypsum products to avoid surface disintegration and to improve mechanical resistance. As fixative and surface aggregating agent for interiors of plasters and frescoes; consolidating and fixing agent for pictorial layers; As binder for natural and synthetic pigments in powder form; As adhesive for the glazing of paper documents. Free of alkylphenols, ethoxylates, plasticizers and coalescents.

PACKEGE: Plastic tanks of 5 - 10 - 20 lt.
COLORE: WHITE
UTILIZZO: Internal/Esterno
DILUITION:
AS AN ADDITIVE: Use undiluted when is required a mortar generally highly deformable and with very high adhesion, to be used on substrates with strong dimensional variation and generally difficult adhesion. Use diluted 1:1 with clean water when is required a mortar generally deformable and with good adhesion, to be used on substrates subject to moderate dimensional variation. Use diluted 1:5 with clean water when The aim is to improve the adhesion and elasticity characteristics.
AS A CONSOLIDATING PRIMER: Use diluted 1:5 with clean water as fixative and surface aggregating agent for interiors of plasters and frescoes; consolidating and fixing agent for pictorial layers.
OTHER USES: Use diluted from 1:3 to 1:4 with clean water as binder for natural and synthetic pigments in powder form. If used as an additive, replace INTOSIL with the mixing water needed to mix the product to be used. Prepare the quantity of usable dough within 2 hours. In case of high temperatures, wind and low humidity, it is advisable to protect from rapid drying by moistening the substrates. Do not apply on frozen substrates, during thawing or in danger of frost within 24 hours. INTOSIL must be worked at a temperature between + 5 ° C and + 30 ° C.

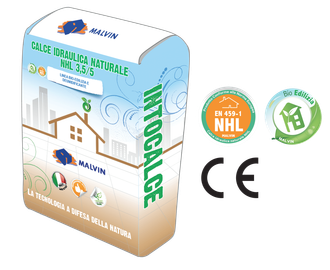

CALCE IDRAULICA NATURALE NHL 3,5/NHL 5

Intocalce MAS

The CALCE DEI BERICI is a Natural Hydraulic Lime produced exclusively by firing a limestone marl, in traditional ovens in layers at temperatures below 1200 ° C. Then, after extinction, the lime is "seasoned" for a prolonged period of time, so as to ensure complete hydration and finally is ground and refined with wind separators. Diffractometric analysis reveals the presence of dicalcium silicate and calcium hydroxide (free lime) typical of natural hydraulic calcium. The absence of typical clinker compounds and the high content of free lime determine a slow and gradual setting with a continuous increase in mechanical strength during the months following the installation. Colour light hazelnut, it is produced in the two classes of mechanical resistance (expressed in N/mm2 at 28 days of maturation), defined by UNI EN 459-1:2010, namely NHL 3,5 and NHL 5.



PAKAGING:It is sold in bulk and in a 25 kg bag
COLORE:light hazelnut

Start of setting tim: NHL 3,5: > 4 ore - NHL 5: > 2 ore
STABILITY: <0,2%
classes of mechanical resistance 28 days EN 13892-2:≥ 3,5 N/mm2/ 5 N/mm2

MALTA PER INTONACI COCCIOPESTO

Intocalce MAS

Pre-packaged powdered mortar, for the realization of plasters on internal and external masonry surfaces, composed of natural hydraulic lime, hydrated aerial lime, selected marble aggregates and crushed earthenware in suitable granulometries, workability regulators, applicable both by hand and by normal plastering machines.




PACKAGING : 25 kg Bags
COLOR: light brick red

Grain size aggregates: aggregati 0-1,4 mm

Mixing water: 22 % circa

Yield: 14 kg/m² per 1 cm di spessore circa

Compressive strength at 28 days: 2,8 N/mm²

Compressive strength at 90 days: 3,2 N/mm²

Flexural strength at 28 days: 0,6 N/mm²

Flexural strength at 90 days: 1,4 N/mm²

Adhesion: ≥ 0,25 N/mm² FP:A

Coefficient of vapour permeability: μ ≤ 10

Share by:
