Screeds and Self-levellers
Screeds and Self-Levellers
INTOMASSO BE
Pre-mixed screed, 1.3 mm grit, with a fluid consistency, based on hydraulic binders, with compensated shrinkage and controlled drying, ideal for hand-or machine-making, even plastered, of background screeds. to be applied directly on Any internal and external surface as long as it is stable and not subjected to capillary ascent, suitable to receive the subsequent application of any paving such as ceramics, terracotta, natural stones, parquets, carpets, rubber, etc.; Suitable for making screeds with Insertion of underfloor heating and floating screed on a resilient mattress for the acoustic insulation of walking noises.
Package:
Bulk in silo-25 kg sacks-70 sacks-17.50 QL footboards
Usage:
Indoor/outdoor
Color:
Grey
Particle size:
≤ 1.3 mm
Yield:
18 kg/sq m per cm of thickness
Thermal conductivity EN 13813:
λ = 1.83 W/MK
Minimum application thickness
Anchored screed cm 3
Float Screed cm 4
Screed on floor heating cm 3 above the ashlar
Float screed on insulating mats > 6 mm cm 5
Compression resistance 28 days EN 13892-2:
≥ 20 N/mm ² (C20)

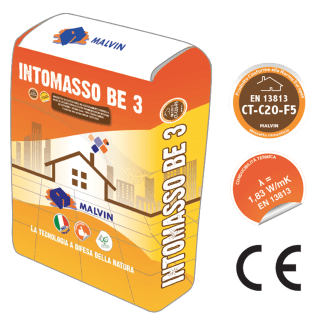

INTOMASSO BE 3 / BE 3 R
BE 3 (4 DAYS) / BE 3 R (24 HOURS)
Pre-mixed screed, 3 mm grit, humid Earth type, based on hydraulic binders, compensated shrinkage and controlled drying, ideal for hand-or machine-making, even pressure pump, of background screeds to be applied directly on any internal and external surface as long as it is stable and not subjected to capillary ascent, suitable to receive the subsequent application of any paving like ceramics after 24 hours, natural stones after 48 hours, parquets and floors. Resilient after 4 days; For the type "R" walkingafter 2/3 hours, laying of ceramics 3/4 hours, natural piere, parquets and floors. Resilient after 24 hours. Suitable for the realization of screed with insertion of underfloor heating and floating screed on a resilient mattress for the acoustic insulation of footstep noises.
Package:
Bulk in silo-25 kg sacks-70 sacks-17.50 QL footboards
Availability:
Be 3 • Be 3 R
RH Drying < 2%:
Be 3 (4 days) • Be 3 R (24 hours)
Usage:
Indoor/outdoor
Color:
Grey
Particle size:
≤ 3 mm
Yield:
20 kg/sq m per cm of thickness
Thermal conductivity EN 13813:
λ = 1.83 W/MK
Minimum application thickness
Anchored screed cm 3
Float Screed cm 4
Screed on floor heating cm 3 above the ashlar
Float screed on insulating mats > 6 mm cm 5
Compression resistance 28 days EN 13892-2:
≥ 20 N/mm ² (C20)

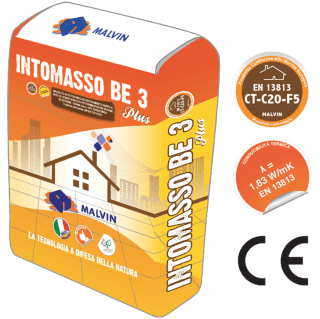

INTOMASSO BE 3 PLUS
Pre-mixed screed, 3 mm grit, damp earth type, fibre-reinforced with stainless amorphous metallic fibres, with high thermal conductivity, based on hydraulic binders, compensated shrinkage with rapid drying and controlled curing, ideal for Realization by hand or machine, also pressure pump, of background screed to be applied directly on any internal surface as long as it is stable and not subject to capillary ascent. suitable to receive the subsequent application of any Paving like ceramics after 24 hours, natural stones after 48 hours, parquets and resilent floors after 4 days; good for the realization of screed with insertion of heating to the floor thanks to the addition of additives that facilitate the sliding between the pipes and of stainless amorphous metallic fibers that confer a high thermal conductivity and screes Floating on a resilient mattress for the acoustic insulation of noise from trampling.
Package:
Bulk in silo-25 kg sacks-70 sacks-17.50 QL footboards
RH Drying < 2%:
4 days
Usage:
Internal
Color:
Grey
Particle size:
≤ 3 mm
Yield:
18/20 kg/mq per cm thickness depending on the degree of comping
Thermal conductivity EN 13813:
λ = 2.03 W/MK
Minimum application thickness
Anchored screed cm 3
Float Screed cm 4
Screed on floor heating cm 3 above the ashlar
Float screed on insulating mats > 6 mm cm 5
Compression resistance at 28 days EN 23892-2:
≥ 20 N/mm ² (C20)
INTOMASSO BE 30
Background screed with high compressive strength, 1.3 mm grit, based on hydraulic binders, compensated shrinkage and controlled drying, ideal for hand-or machine-making, including plasters, background screed and collaborating insoles, Also in combination with the structural reinforcement system Malvin NET, which uses high-adhesion G.F.R.P. (Glass Fiber Reinforced Polymer) nets and rods and steel connectors to be applied directly to any internal and external surface provided Stable and not subject to capillary ascent, suitable to receive the subsequent application of any paving like ceramics, terracotta, natural stones, parquets, carpets, rubber, etc.
Package:
Bulk in silo-25 kg sacks-70 sacks-17.50 QL footboards
Usage:
Indoor/outdoor
Color:
Grey
Particle size:
≤ 1.3 mm
Yield:
18 kg/sq m per cm of thickness
Thermal conductivity EN 13813:
λ = 1.83 W/MK
Compression resistance 28 days EN 13892-2:
≥ 30 N/mm ² (C30)
Minimum application thickness:
Anchored screed 3 cm
4 cm co-operative screed
INTOMASSO AUT
Self-leveling premixed screed, based on hydraulic binders, fiber-reinforced, with a special composition of specially designed polypropylene fibers, with compensated shrinkage and controlled drying, ideal for the hand or machine creation, even with a plastering machine, of self-leveling foundation screeds and mixing with water to the right consistency, also of screed of the slopes, to be applied directly on any internal and external surface as long as stable and not subject to capillary rise, suitable to receive the subsequent application of any flooring such as pottery, terracotta, natural stones, parquets , carpets, rubber, etc .; suitable for making screeds with floor heating and floating screeds on a resilient mat for the sound insulation of foot traffic noises.
PACKAGING:
Loose in silo - 25 kg sacks - 70 bags sacks - 17.50 ql
USE:
Indoor / Outdoor
COLOR:
Grey
GRANULOMETRY:
≤ 3 mm
SURRENDER:
18 kg / m² per cm of thickness
THERMAL CONDUCTIVITY EN 13813:
λ = 1.83 W / mK
MINIMUM APPLICATION THICKNESS
Screed anchored
3 cm
Floating screed
4 cm
Screed on underfloor heating
3 cm above
Floating screed on insulating mats> 6 mm
cm 5
COMPRESSION RESISTANCE At 28 days EN 23892-2:
≥25 N / mm² (C25)
INTOMASSO EASY
Premixed self-levelling screed, based on hydraulic binders, fibro-cocked, with special polymeric extruded aggregates, with compensated shrinkage and controlled drying, ideal for the realization by hand or machine, even with plastering machines. to be applied directly on any internal and external surface, provided that it is stable and not subject to capillary ascent, suitable to receive the next Application of any paving such as ceramics, terracotta, natural stones, parquets, carpets, rubber, etc.; Suitable for the realization of screed with insertion of underfloor heating and floating scree on a resilient mattress for the acoustic insulation of footstep noises.
Package:
Bulk in silo-25 kg sacks-70 sacks-17.50 QL footboards
Usage:
Indoor/outdoor
Color:
Grey
Particle size:
≤ 3 mm
Theoretical yield:
18 kg/mq per cm of thickness
Thermal conductivity EN 13813:
λ = 1.83 W/Mk
Minimum application thickness
Anchored screed cm 3
Float Screed cm 4
Screed on floor heating cm 3 above the ashlar
Float screed on insulating mats > 6 mm cm 5
Compression resistance 28 days EN 23892-2:
≥ 25 N/mm ² (C25)
INTOCALCE MAS
Pre-mixed Eco-compatible Bio-screed, 3 mm grain, damp earth type, based on natural hydraulic lime, NHL 3.5 According to EN 459-1. compensated shrinkage with controlled drying, ideal for hand or machine realization, or pressure pump. Substrate to be applied directly on any internal and external surface provided that it is stable and not subject to capillary ascent, suitable to receive the subsequent application of any paving such as ceramics, natural stones, parquets and floors resilents; Suitable for the application of screed with insertion of underfloor heating and floating screed on a resilient mattress for the acoustic insulation of footstep noises. Recyclable as inert at the end of life. Specifically for the preservation of historical artefacts.
Package:
Bulk in silo-25 kg sacks-70 sacks-17.50 QL footboards
Usage:
Indoor/outdoor
Color:
Hazelnut
Particle size:
≤ 3 mm
Yield:
20 kg/sq m per cm of thickness
Thermal conductivity EN 13813:
λ = 1.83 W/MK
Minimum application thickness
Anchored screed cm 3
Float Screed cm 4
Screed on floor heating cm 3 above the ashlar
Float screed on insulating mats > 6mm cm 5
Compression resistance at 28 days EN 13892-2:
≥ 16 N/mm ² (C16)
INTOBIO MAS
Pre-mixed eco-compatible biomelage, 3 mm grain, humid earth type, made from natural lime and bio-pozzolana, with compensated shrinkage and controlled drying, ideal for hand or machine realization, or pressure pump. Apply directly to any internal and external surface as long as it is stable and not subject to capillary ascent, suitable to receive the subsequent application of any paving such as ceramics, natural stones, parquets and resilient floors; Suitable for the application of screed with insertion of underfloor heating and floating scree on a resilient mattress for the acoustic insulation of footstep noises. The characteristics of natural lime and bio-Pozzolana are such as to guarantee a very slow and constant hardening that allows to obtain mortars with high durability and breathability. Recyclable as inert at the end of life. Specific for the preservation of historical artefacts, thanks to the natural origin of its components that respect the nature of the original materials of the structures of historical interest.
Package:
Bulk in silo-25 Kg sacks-70 sacks from 17.50 QL.
Usage:
Indoor/outdoor
Color:
White
Particle size:
≤ 3mm
Yield:
20 kg/sq m per cm of thickness
Thermal conductivity UNI EN 13813:
λ = 1.83 W/MK
Minimum application thickness
Anchored screed 3 cm
Float Screed 4 cm
Screed on floor Heating 3 cm above the ashlar
Float screed on insulating mats > 6 mm 5 cm
Compression resistance at 28 days EN 13892-2:
≥ 16 N/mm ² (C16)
INTOMASSO F
Premixed Binder made of special hydraulic binders that mixed with selected sand. a quick drying plywood screed is created, ideal for the hand-or machine-making of background screeds, to be applied directly to Any internal and external surface as long as it is stable and not subjected to capillary ascent. suitable to receive the following application of any paving such as: ceramics, terracotta, natural stones, parquets, carpets, rubber, etc.; Suitable for the realization of screed with insertion of underfloor heating and floating scree on a resilient mattress for the acoustic insulation of footstep noises. For its special features it hardens in a few hours and dries in t24 hours, reaching within 7/10 days a humidity of less than 2% by weight.
Package:
25 kg sacks-70 sacks-17.50 QL footboards
Usage:
Indoor/outdoor
Color:
Grey
Particle size:
≤ 0.1 mm
Yield:
3 kg/sq m per cm of thickness
Dosage for 25 kg sack:
Water ~ 10% on weight (up to humid earth consistency)
Aggregates 100 kg (aggregates in bends from 0 to 8 mm)
INTOMASSO LE
Premixed Binder made of special hydraulic binders that mixed with selected sand. a quick drying plywood screed is created, ideal for the hand or machine application of background screed, both floating and adherent, To be applied directly on any internal and external surface as long as it is stable and not subjected to capillary ascent. suitable to receive the following application of any paving such as: ceramics, terracotta, natural stones, parquets, carpets, rubber, etc. Suitable for the realization of screed with insertion of underfloor heating and floating screed on a resilient mattress for the acoustic insulation of footstep noises. For its special features it is walkable in 24 hours and dries after 4 days for the laying of parquet and resilient flooring.
Package:
25 kg sacks-70 sacks-17.50 QL footboards
Usage:
Indoor/outdoor
Color:
Grey
Particle size:
≤ 0.1 mm
Yield:
2/2.5 kg/sqm of binder per cm of thickness
Dosage for 25 kg sack:
Inert IN curve from 0 to 3 mm
Water ~ 8/10% on weight (up to humid earth consistency) aggregates 160 kg
Inert IN curve from 0 to 8 mm
Water ~ 8/10% on weight (up to humid earth consistency) aggregates 200 kg
INTOMASSO AL
Pre-mixed self-levelling mortar made from special hydraulic binders with high mechanical strength compensated shrinkage. ideal for the creation of shaving of cementitious substrates, internal and external paving, to be applied directly to any Surface as: substrates in traditional screed, premixated screeds type Intomasso be – Intomasso be 3/Be 3 PLUS – INTOMASSO EASY Intomasso AUT intocalce Mas Intobio Mas, Lightened screeds type Intomasso ESP Intomasso THERMO Biomasso Sughero, concrete substrates, prefab concrete or jet substrates, provided that it is stable and not subject to capillary ascent. suitable to receive the next Application of any paving such as: ceramics, terracotta, parquets, carpets, rubber, etc.
Package:
25 kg sacks-70 sacks-17.50 QL footboards
Usage:
Indoor/outdoor
Color:
Grey
Particle size:
≤ 0.6 mm
Yield:
1.6 kg/MQ per mm thickness
Thermal conductivity EN 13813:
λ = 0.80 W/mk
Compression resistance at 28 days EN 13892-2:
≥ 30 N/mm ² (C30)

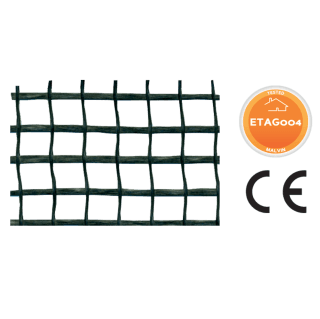

MALVIN NET 4.4
ETAG 004 Certified Fibreglass mesh with antialkanic treatment with 4x4 cm mesh light, with a weight of 130 g/Mg and prepared to resist the alkali of cement and of the carbon of chalk. Ideal for armour and reinforcement of screed even of low thickness. It has a longitudinal/transverse resistance of about 10% higher than the iron net
Galvanized Light Mesh 5x5 cm ø2 mm.
Package:
Rolls:
Height 1 m-length 50 m-Pallets from 900 m²
Panels:
1 x 2 m-Pallets of 1500 m²
Weight fabric dresser UNI 9311/4:130gr/m²
Elongation at breaking UNI 9311/5:2.8%
Elongation at tensile strength UNI 9311/5: Warp: > 2,940 N/5cm • Weft: > 1,330 N/5cm
Medium thickness of fabric with the interpretation UNI 9311/3:0, 95mm
PROFILE UNDERWAY
Under-door support
Dimensions:Thickness from 8 mm • Dimensions from 11 cm
Size:200 cm Bars-80 m pack
INTOMASSO BE 3 LIGHT
Lightweight premixed screed with compensated shrinkage, dry and controlled drying. based on hydraulic binders and hollow glass spheres. ideal for hand or machine realization, even pressure pump from lightened background screed. Apply directly to any internal and external surface as long as it is stable and not subjected to capillary ascent, non-fissure, non-detached is breathable and resistant to impact, suitable to receive the subsequent application of any flooring and membrane Waterproof and cementitious waterproofing; Suitable for the realization of screed in general inside and outside, lightweight screed, insulating under tile, for slopes and roofs, floating scree on a resilient mattress for the acoustic insulation of noise from trampling.
Package:
Bulk in silo-20 kg sacks-70 sacks-14.50 QL Footboards
Use:
internal and external
Color:
Grey
Particle size:
≤ 4 mm
Yield:
10 kg/sqm per cm thickness depending on the degree of comping
Thermal conductivity EN 13813:
λ = 0.24 W/MK
Minimum application thickness
Anchored screed cm 5
Anchored screed (see application) cm 3.5
Float screed cm 5
Float screed on insulating mats up to 6mm cm 6
Float screed on insulating Mats 7 to 12mm 7 cm
Float screed on insulating mats 13 to 20mm cm 8
Compression resistance at 28 days EN 13892-2:9.5 N/mm2 (C7)
Bending resistance at 28 days EN 13892-2:
3.2 N/mm2 (F3)
