Light Structural Concrete
Light Structural Concrete

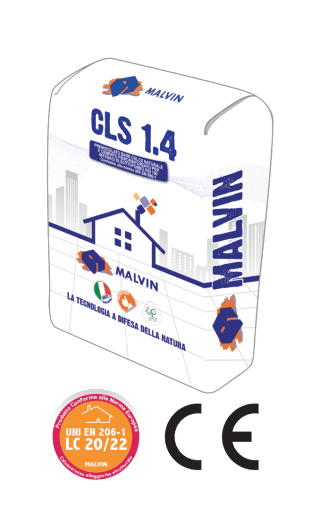

CLS 1.4
Light-weight premixed structural concrete, standard UNI EN 206-1 with resistance class LC 20/22, based on hydraulic binders and hollow spheres of glass, for indoor and outdoor use. To be applied by mechanical projection or by hand for lightened structural concretes in general. It does not corrode metals but protects them if wrapped completely. To be used for internal and external structural castings, for concrete in general with lightness and high resistance characteristics, for collaborative castings on slabs in Putrelle/Laterizio, laterocement, Wood. Available for quick drying type "R". FPC 0925 production process certificate.
Package: sacks of kg. 23 on wood pallets of 16,10 ql.(70 sacks).
Usage:
Indoors/outdoors
Colour:
Grey
Particle size:
≤ 3 mm
Yield:
14/15 kg/mq per cm of thickness
Compression resistance at 28 days UNI EN 206-1:
> 25 N/mm ² • (LC class 20/22)
Coefic. of RES. to the PASS. Steam EN 1745:
μ = 6
Thermal conductivity:
λ = 0,42

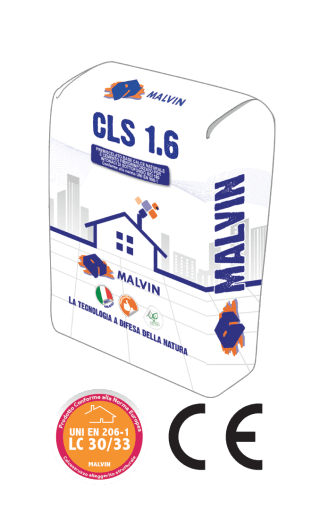

CLS 1.6
High-resistance premixed lightweight structural concrete, standard UNI EN 206-1 with resistance class LC 30/33, based on hydraulic binders and hollow glass spheres, for indoor and outdoor use. To be applied by mechanical projection or by hand for lightened structural concretes. It does not corrode metals but protects them if wrapped completely. To be used for internal and external structural castings, for concrete in general with lightness and high resistance characteristics, for collaborative castings on slabs in Putrelle/Laterizio, laterocement, Wood. FPC 0925 production process certificate.
Package: sacks of kg. 24 on wood pallets of 16,80 ql.(70 sacks).
Usage:
Indoor/outdoor
Colour:
Grey
Particle size:
≤ 3 mm
Yield:
16/17 kg/mq per cm of thickness
Compression resistance at 28 days UNI EN 206-1:
> 35 N/mm ² • (LC class 30/33)
Coefic. of RES. to the PASS. Steam EN 1745:
μ = 6
Thermal conductivity:
λ = 0,54

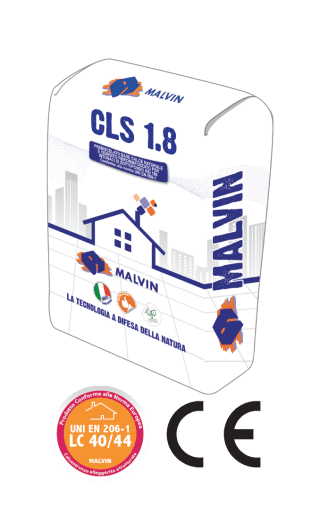

CLS 1.8
Lightened structural concrete with high performance pre-mixed anti-rust protection according to uni EN 206-1 of resistance class LC 40/44, fibre reinforced with a special composition of polypropylene fibres, based on hydraulic binders and hollow glass spheres, for internal and external use. To be applied by mechanical projection or by hand for lightened structural concretes lightened in general. It does not corrode metals but protects them if they wrap them completely. To be used for internal and external structural jets, for reinforcing jets on slabs in corrugated or metallic sheet steel, generally for concrete with lightness and high resistance characteristics, for collaborative castings on beams/bricks, Laterocemento, Wood. FPC 0925 production process certificate.
Package: sacks of kg. 25 on wood pallets of 17,50 ql.(70 sacks).
Usage:
Indoor/outdoor
Colour:
Grey
Particle size:
≤ 3 mm
Yield:
18/19 kg/mq per cm of thickness
Compression resistance at 28 days UNI EN 206-1:
> 45 N/mm ² • (LC class 40/44)

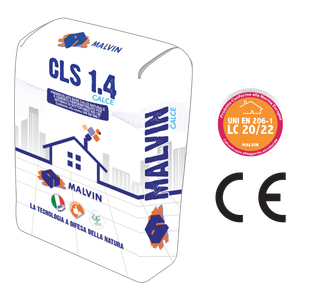

CLS 1.4 CALCE
Reduced structural anti-shrinkage concrete premixed according to uni EN 206-1 with resistance class LC 20/22, based on hydraulic binders, NHL natural hydraulic lime According to EN 459-1 and hollow glass spheres, for indoor and outdoor use with high and constant leve.l Qualitatively assessed. To be applied by mechanical projection or by hand for lightened structural concretes lightened in general. It does not corrode metals but protects them if they wrap them completely.
Package: sacks of kg. 23 on wood pallets of 16,10 ql.(70 sacks).
Available:
Normal and type R
Usage:
Indoor/outdoor
Colour:
Grey
Particle size:
≤ 3 mm
Yield:
14/15 kg/mq per cm of thickness
Compression resistance at 28 days UNI EN 206-1:
> 25 N/mm ² • (LC class 20/22)
Coefic. of RES. to the PASS. Steam EN 1745:
μ = 6
Thermal conductivity:
λ = 0,42

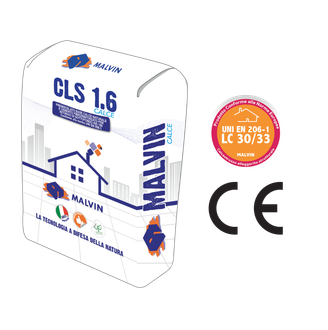

CLS 1.6 CALCE
Structural lightweight concrete premixed anti shrinkage resistant to UNI EN 206-11 with resistance class LC 30/33, based on hydraulic binders, natural hydraulic lime NHL in accordance with EN 459-1 and hollow glass spheres, for interiors and external with a high and constant quality level, produced with computerized system, to be applied by mechanical projection or by hand for the realization of structural concretes lightened in general. It does not attack metals but protects them if it covers them completely.
PACKAGING: sacks of kg. 24 on wood pallets of 16,80 ql.(70 sacks).
USE:
Indoor / Outdoor
COLOR:
Grey
GRANULOMETRY:
≤ 3 mm
SURRENDER:
16/17 kg / m² per cm of thickness
COMPRESSION RESISTANCE TO 28 days UNI EN 206-1:
> 35 N / mm² • (Class LC 30/33)
COEFIC.DI RES.AL PASS. OF THE VAPOR EN 1745:
μ = 6
THERMAL CONDUCTIVITY:
λ = 0.54

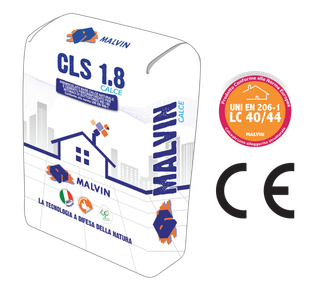

CLS 1.8 CALCE
Premixed structural light concrete high performance anti shrinkage compliant with UNI EN 206-1 with class of resistance LC 40/44, fibre-reinforced with a special polypropylene fibre composition, based on hydraulic binders, natural hydraulic lime NHL compliant with EN 459-1 and hollow glass spheres, for interiors and exteriors with a high and constant quality level, produced with computerized plant, to be applied by mechanical projection or by hand for the production of lightweight structural concrete in general. It does not attack metals but protects them if it wraps them around completely.
Package: sacks of kg. 25 on wood pallets of 17,50 ql.(70 sacks).
Available:
Normal and type R
Usage:
Indoor/outdoor
Colour:
Grey
Particle size:
≤ 3 mm
Yield:
18/19 per cm of thickness
Compression resistance at 28 days UNI EN 206-1:
> 45 N/mm ² • (LC class 40/44)
Coefic. of RES. to the PASS. Steam EN 1745:
μ = 6
Thermal conductivity:
λ = 0,70

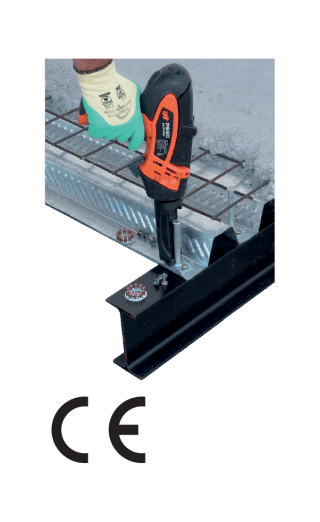

CLS STEEL CONNECTOR
Piole Connector (Tecnaria) in galvanized steel, diameter 12 mm with head, cold-beaten to an anchor plate 38 x 50 mm 4 mm thick, fixed to the steel structure by two nails.
Shank Heights available:
40, 60, 70, 80, 105, 125, 135 mm
BASE PLATE:
38 x 50 mm-Screws Ø 12 mm

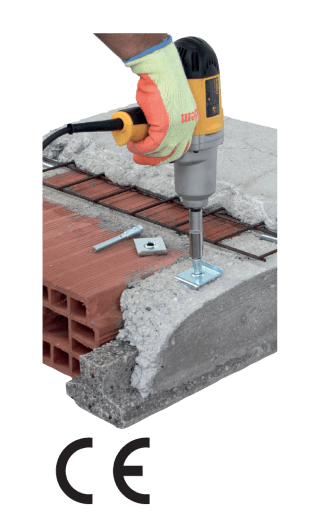

CLS CONCRETE CONNECTOR
Piolo connector (technical) screw and toothed plate for shooting of concrete. Element composed by a hardened steel shank 10.9, Ø 14 mm, with washer and hexagon head 15 mm, threaded body of Ø 12 mm with a conical trunk section at the beginning of the threaded part that allows the insertion of a rectangular plate with Central hole size 60 x 50 x 4 mm with two sides folded, galvaniSed.
Structural Concrete
CLS RCK 30
High performance pre-mixed structural concrete, anti-shrinkage according to uni EN 206-1 with resistance class C 32/40, fibre reinforced with a special fibre composition specially designed, based on hydraulic binders, for indoor and outdoor use. To be applied by mechanical projection or by hand for the realisation of structural concretes in general. It does not attack metals but protects them if they wrap them completely.
Package:
25 kg sacks-70 sacks-17.50 QL footboards
Usage:
Indoor/outdoor
Color:
Grey
Particle size:
< 5 mm
Yield:
23 kg/sq m per cm of thickness
Compression resistance at 28 days UNI EN 206-1:
> 33 N/mm ²
Resistance class UNI EN 206-1:
C25/30
CLS RCK 40
Structural concrete with high performance premixed anti shrinkage according to the UNI EN 206-1 standard with resistance class C 32/40, fibre-reinforced with a special composition of specifically designed fibres, based on hydraulic binders, for internal and external high and constant quality level. To be applied by mechanical projection or by hand for the realization of structural concretes in general. It does not corrode metals but protects them if covered completely.
PACKAGING:
25 kg sacks - 70 bags sacks - 17.50 ql
USE:
Indoor / Outdoor
COLOR:
Grey
GRANULOMETRY:
<5 mm
SURRENDER:
23 kg / m² per cm of thickness
COMPRESSION RESISTANCE TO 28 days UNI EN 206-1:
> 43 N / mm²
RESISTANCE CLASS UNI EN 206-1:
C32 / 40
