Fire and Acoustic Insulation Plaster

Fire and Acoustic Insulation Plasters

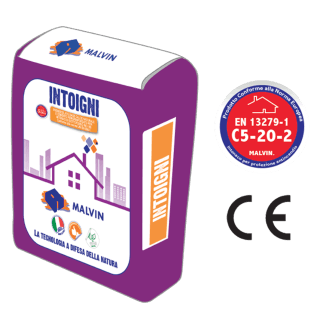

INTOIGNI

Intoigni
Scarica la Certificazione
Single layer premised plaster made from natural lime, plaster and light mineral aggregates (perlite, vermiculite), for the construction of internal plaster for the fire protection of walls and floors. certified REI 120 for thickness of CM 2, for mechanical and manual application, to be applied directly on internal surfaces such as bricks, old masonry, concrete, reinforced concrete, reinforced brick slabs and iron surfaces.

Package: Bulk in silo-25 kg sacks-60 sacks-15.00 QL footboards
Usage: Internal
Color: White
Particle size: ≤ 1 mm
Yield: 7/8 kg/mq per cm of thickness
Vapour-passage resistance coefficient EN 1015-19: μ = 6.6
Thermal conductivity EN 13279-1: λ = 0.20 W/MK
Fire Resistance: REI 120
Certification:
Wall • Certificates Istituto Giordano S. P. A N ° 47254/0906RF-REI120 thickness 2 cm
Floor • Certificates Istituto Giordano S. P. A N ° 51720/0950RF-REI120 thickness 2 cm

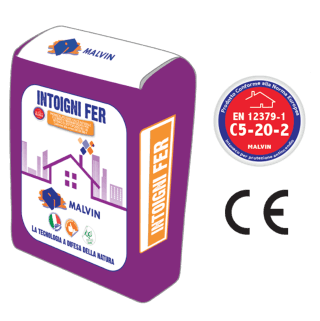

INTOIGNI FER

Intoigni FER
Scarica la Certificazione
Single layer premised plaster made from special binders and light mineral aggregates (perlite, vermiculite), for the application of internal plaster for the fire protection of walls and floors and in particular of metallic structures. Reinforced concrete and metallic ducts up to REI 180 for thicknesses from 1.1 to 3 cm, for mechanical and manual application.

Packaging: Bulk in silo-13.00 kg sacks-60 bags-7.80 QL
Usage: Internal
Color: White
Particle size: ≤ 1 mm
Yield: 5/6 kg/mq per cm of thickness
Vapour resistance coefficient EN 1015-19: μ = 14
Certified Thermal conductivity: = 0.086 W/MK *
Fire resistance D.M. of 16/02/2007: REI 180
* Certification: Certificate Institute Giordano n ° 273483 of 22/09/2011

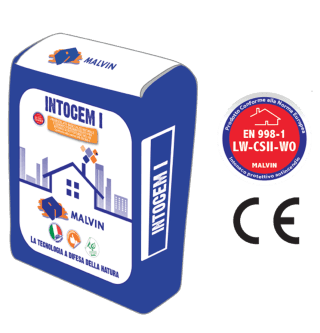

INTOCEM I

Intocem I
Lightweight premixed plaster based on hydraulic binders and light mineral aggregates (perlite, vermiculite), for the construction of internal and external background plaster for the fire protection of walls and floors. REI 120 for thickness of CM 2.5, Mechanical and manual application. Available fibre-reinforced with a special composition of polypropylene fibres specially studied "FR" type.

Package: Bulk in silo-22 kg bags-70 sacks-15.40 QL footboards
Usage: Indoor/outdoor
Color: Grey
Particle size: ≤ 1.3 mm
Yield: 9/10 kg/mq per cm of thickness
Vapour resistance coefficient EN 1015-19: μ = 5
Capillary water absorption EN 1015-18: Class "W0"
Thermal conductivity EN 1745: λ10, dry, mat = 0.25 W/MK
Fire resistance According to D.M. of 16/02/2007: REI 120

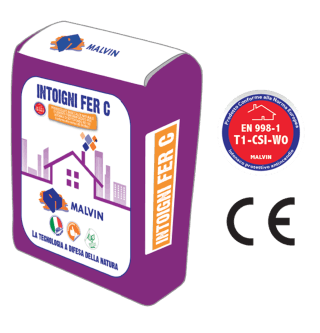

INTOIGNI FER C

Intoigni FER C
Lightened premixed plasters based on special hydraulic binders and light mineral aggregates (perlite, vermiculite), for the realization of internal and external foundation plaster for fire protection of walls and floors and in particular of metal structures or reinforced concrete and metal pipes up to REI 180 for thicknesses from 1.1 to 3 cm, with mechanical and manual application.

PACKAGING: Loose in silo - Bags of 13 kg - platforms of 60 bags - 7.80 ql
USE: Indoor / Outdoor
COLOR: White / Gray
GRANULOMETRY: ≤ 1.3 mm
SURRENDER: 5/6 kg / m² per cm of thickness
RESISTANCE COEFFICIENT TO STEAM PASSAGE EN 1015-19: μ ≤14
THERMAL CONDUCTIVITY EN 1745: λ10, dry, mat = 0.086 W / mK
FIRE RESISTANCE ACCORDING TO DM dated 02/16/207: REI 180

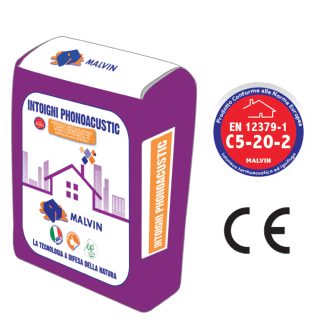

INTOIGNI PHONOACUSTIC

Intoigni PHONOACUSTIC
Thermo-layer, acoustic and fire-retardant premixed plaster, based on natural lime, plaster and light natural aggregates (perlite, vermiculite) for internal background plasters for fire protection, thermal insulation and The acoustic abatement of walls and floors, to be applied by mechanical projection or by hand, directly on brick surfaces, old masonry, concrete, reinforced concrete, reinforced brick slabs, structures and metallic canalizations, etc. Used as plaster, applies directly to any surface. Non-slit, does not detach is breathable and resistant to impact. Subjected to heat does not develop toxic gases. It does not contain any harmful elements for the safety of the operator. Regulates humidity, reduces heat loss by conduction and irradiation; It has a good thermal inertia, accumulating and maintaining the heat, it provides continuous insulation without leaving thermal bridges in correspondence of the insoles and pillars. It allows the correction and acoustic reduction of churches, recording rooms, cinemas, theatres, etc.; It lowers the noise level of industrial factories, environments used for telephone conversations, restaurants, offices, etc.; It complies with the Ministerial Circular n ° 3150 about the right reverberation time for classrooms and gymnasiums. It allows in addition a safe fire protection certifiable. It therefore achieves excellent thermo-acoustic and fire-retardant insulation.

Package: 13.00 kg Bags-60 sacks-7.80 QL footboards
Usage: Internal
Color: White
Particle size: ≤ 1mm
Yield: 5/6 kg/mq per cm of thickness
Vapour resistance coefficient EN 1015-19: μ = 14
Thermal conductivity EN 13279-1: λ = 0.086 W/MK
Resistance to fire according to D.M. of 16/2/2007: REI 120

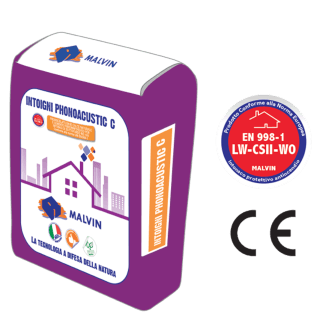

INTOIGNI PHONOACUSTIC C

Intoigni PHONOACOUSTIC C
Lightweight premixed plaster based on hydraulic binders and light mineral aggregates (perlite, vermiculite) for the realization of internal and external background plasters for correction and acoustic reduction. mechanical and manual application. It allows the acoustic correction of churches, recording rooms, cinemas, theatres, etc.; It lowers the noise level of industrial factories, environments used for telephone conversations, restaurants, offices, etc.; It complies with the Ministerial Circular n ° 3150 about the right reverberation time for classrooms and gymnasiums. To be applied by machine or by hand, directly on internal and external surfaces in brick, old masonry, concrete, reinforced concrete, reinforced brick slabs, etc.

Package: 13 kg Sacks-60 sacks-7.80 QL footboards
Usage: Indoor/outdoor
Color: Grey
Particle size: ≤ 1.3 mm
Yield: 5.5/6.5 kg/sqm per cm thick
Vapour-passage resistance coefficient EN 1015-19: μ ≤ 8
Capillary water absorption EN 1015-18: Class "W0"
Thermal conductivity EN 1745: λ10, dry, mat = 0.10 W/MK
Resistance to fire according to D.M. of 16/2/2007: REI 120

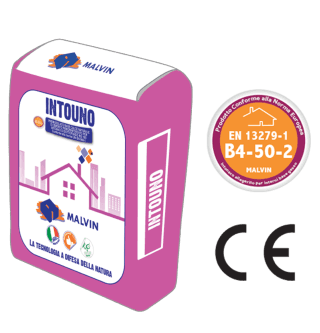

INTOUNO

Intouno
Premixed lightweight single-layer plaster based on natural lime and gypsum and light mineral aggregates (perlite, vermiculite) for interior background plasters, to be applied directly on old and new building surfaces such as bricks, latero-cement, old walls, concrete, reinforced concrete , reinforced brick floors, etc. by mechanical and manual application. Available fiber-reinforced with a special polypropylene fiber composition specially designed type "FR" and "MA" type hand.

PACKAGING: Loose in silo - 25 kg sacks - 60 bags sacks - 15.00 ql.
USE: Indoor
COLOR: White
GRANULOMETRY: ≤ 1, mm
SURRENDER: 8/10 kg / sqm per cm of thickness
RESISTANCE COEFFICIENT TO STEAM PASSAGE EN 1015-19: μ ≤ 6.6
THERMAL CONDUCTIVITY EN 13279-1: λ = 0.20 W / mK
FIRE RESISTANCE ACCORDING TO DM 02/16/2007: REI 120
