Plasters with Lime and Cement Bases

Plasters with Lime and Cement Bases

INTOCEM

Intocem
Premixed plaster based on natural lime and grey cement, for substrate plasters to be applied directly on any internal and external surface of old and new buildings such as bricks, masonry, old walls, concrete, reinforced concrete, reinforced brick floors, etc. by mechanical and manual application.

PACKAGING: Loose in silo - 25 kg sacks - 70 bags sacks - 17.50 ql
USE: Indoor / Outdoor
Colour: Grey
GRANULOMETRY: ≤ 1.3 mm
YIELD: 14 ​​kg / m² per cm of thickness
EN 1015-19 STEAM PASSAGE RESISTANCE COEFFICIENT: μ ≤ 10
CAPILLARY WATER ABSORPTION EN 1015-18: "W0" class
THERMAL CONDUCTIVITY EN 1745: λ10, dry, mat = 0.43 W / mK
FIRE RESISTANCE ACCORDING TO D.M. dated 02/16/2007: REI 180

INTOCEM FR

Intocem FR
Premixed plaster based on natural lime and grey or white cement, fibre-reinforced with a special composition of specially designed polypropylene fibres, for internal and external background plasters to be applied directly on any internal and external surface of old and new buildings such as brick, masonry , old walls, concrete, reinforced concrete, reinforced brick floors, etc. by mechanical and manual application.

PACKAGING: Loose in silo - 25 kg sacks - 70 bags sacks - 17.50 ql
USE: Indoor / Outdoor
COLOUR: Grey / White
GRANULOMETRY: ≤ 1.3 mm
YIELD: 14 ​​kg / m² per cm of thickness
EN 1015-19 STEAM PASSAGE RESISTANCE COEFFICIENT: μ ≤ 10
CAPILLARY WATER ABSORPTION EN 1015-18: "W0" class
THERMAL CONDUCTIVITY EN 1745: λ10, dry, mat = 0.43 W / mK
FIRE RESISTANCE ACCORDING TO D.M. dated 02/16/2007: REI 180

INTOCEM REP

Intocem REP
Water-repellent premixed plaster based on natural lime and gray or white cement for background plaster to be applied directly on any internal and external surface of old and new buildings such as bricks, masonry, old walls, concrete, reinforced concrete, reinforced brick floors, etc. by mechanical and manual application. Available fibre-reinforced with a special composition of specially designed polypropylene fibres - type "FR". Particularly suitable for applications on external walls subject to heavy rain.

PACKAGING: Loose in silo - 25 kg sacks - 70 bags sacks - 17.50 ql
USE: Indoor / Outdoor
COLOUR: Grey / White
GRANULOMETRY: ≤ 1.3 mm
YIELD: 14 ​​kg / m² per cm of thickness
EN 1015-19 STEAM PASSAGE RESISTANCE COEFFICIENT: μ ≤ 10
CAPILLARY WATER ABSORPTION EN 1015-18: Class "W1"
THERMAL CONDUCTIVITY EN 1745: λ10, dry, mat = 0.43 W / mK
FIRE RESISTANCE ACCORDING TO D.M. dated 02/16/2007: REI 120

INTOCEM B

Intocem B
Premixed plaster based on natural lime and white cement, for substrate plasters to be applied directly on any internal and external surface of old and new buildings such as bricks, masonry, old walls, concrete, reinforced concrete, reinforced brick floors, etc. by mechanical and manual application.

PACKAGING: Loose in silo - 25 kg sacks - 70 bags sacks - 17.50 ql
USE: Indoor / Outdoor
COLOUR: White
GRANULOMETRY: ≤ 1.3 mm
YIELD: 14 ​​kg / m² per cm of thickness
EN 1015-19 STEAM PASSAGE RESISTANCE COEFFICIENT: μ ≤ 10
CAPILLARY WATER ABSORPTION EN 1015-18: "W0" class
THERMAL CONDUCTIVITY EN 1745: λ10, dry, mat = 0.43 W / mK
FIRE RESISTANCE ACCORDING TO D.M. dated 02/16/2007: REI 180

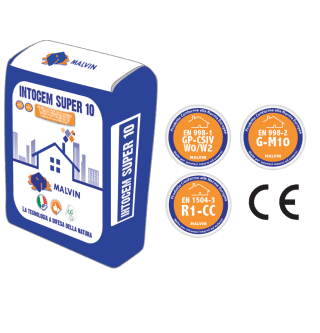

INTOCEM SUPER 10

Intocem Super 10
High-strength mortar for structural use, with CSIV resistance class according to EN 998-1, M10 according to EN 998-2 and R1 according to EN 1504-3, based on natural lime and cement, with controlled shrinkage, for plasters of internal and external foundation, for the consolidation of masonry structures, for the construction of reinforced concrete with the MALVIN NET structural reinforcement system, which uses pre-formed networks, connectors and accessories in GFRP (Glass Fibre Reinforced Polymer) (* FIBER NET), or FRP (Fibre Reinforced Polymer) meshes AR GLASS (alkaline resistant) and cold-drawn AISI 304 stainless steel connectors, both on the wall and on the vaults for restoration and reinforcement of masonry works (kitchens and shafts), restoring mortar reconstruction in the connections or for the lodging of load-bearing walls, to be applied with a plastering machine or by hand. Suitable to receive heavy type coatings: marble, clinker, natural stone, ceramic etc. Available fibre-reinforced with a special polypropylene fibre composition specially designed type "FR" and water-repellent type "I".

PACKAGING: Loose in silo • 25 kg sacks - 70 bags sacks - 17.50 ql
USE: Indoor / Outdoor
Colour: Grey
GRANULOMETRY: ≤ 1.3 mm
YIELD: As plaster 14 kg / m² per cm of thickness • As mortar 15/16 kg / sqm of masonry with bricks of 8 cm

TECHNICAL DATA ACCORDING TO UNI EN 998-1 STANDARD
COMPRESSION RESISTANCE at 28 days EN 1015-11: 10 N / mm²
COEF. OF RESISTANCE TO PASS. OF THE VAPOR EN 1015-19: 15 ≤ μ
ASSORB. CAPILLARY WATER EN 1015-18: W0 - TYPE "I": W1
THERMAL CONDUCTIVITY EN 1745: λ10, dry, mat = 0.47 W / mK
FIRE RESISTANCE ACCORDING TO D.M. dated 02/16/2007: REI 120

TECHNICAL DATA ACCORDING TO UNI EN 998-2 STANDARD
COMPRESSION RESISTANCE TO 28 days EN 1015-11: M10 (10 N / mm²)
COEF. OF RESISTANCE TO PASS. OF THE VAPOR EN 1015-19: 5 <μ <20
ASSORB. WATER CAPILLARY EN 1015-18: > 0,50 Kg (m² • min⁰'⁵)
TYPE "I": ≤0,20 Kg (m² • min⁰'⁵)
THERMAL CONDUCTIVITY EN 1745: λ10, dry, mat = 0.47 W / mK
FIRE RESISTANCE ACCORDING TO D.M. dated 02/16/2007: REI 120

TECHNICAL DATA ACCORDING TO UNI EN 1504-3
COMPRESSION RESISTANCE TO 28 days EN 12190: 10 MPa (Class R1)
CONTENT OF ION CHLORIDE "C1": ≤ 0.5%
EN 1542 ADHERENCE BOND: ≥ 0.8 N / mm

INTOCEM SUPER 15

Intocem Super 15
High-strength mortar for structural use, with CSIV resistance class according to EN 998-1, M10 according to EN 998-2 and R1 according to EN 1504-3, based on natural lime and cement, with controlled shrinkage, for plasters of internal and external foundation, for the consolidation of masonry structures, for the construction of reinforced concrete with the MALVIN NET structural reinforcement system, which uses pre-formed networks, connectors and accessories in GFRP (Glass Fibre Reinforced Polymer) (* FIBER NET), or FRP (Fibre Reinforced Polymer) meshes AR GLASS (alkaline resistant) and cold-drawn AISI 304 stainless steel connectors, both on the wall and on the vaults for restoration and reinforcement of masonry works (kitchens and shafts), restoring mortar reconstruction in the connections or for the lodging of load-bearing walls, to be applied with a plastering machine or by hand. Suitable to receive heavy type coatings: marble, clinker, natural stone, ceramic etc. Available fibre-reinforced with a special polypropylene fibre composition specially designed type "FR" and water-repellent type "I".

PACKAGING: Loose in silo - 25 kg sacks - 70 bags sacks - 17.50 ql
USE: Indoor / Outdoor
Colour: Grey
GRANULOMETRY: ≤ 1.3 mm
YIELD: As plaster 14 kg / m² per cm of thickness • As mortar 15/16 kg / sqm of masonry with bricks of 8 cm

TECHNICAL DATA ACCORDING TO UNI EN 998-1 STANDARD
COMPRESSION RESISTANCE TO 28 days EN 1015-11: M15 (15 N / mm²)
COEF. OF RESISTANCE TO PASS. OF THE VAPOR EN 1015-19: 15 <μ
ASSORB. CAPILLARY WATER EN 1015-18: W0 - TYPE "I": W2
THERMAL CONDUCTIVITY EN 1745: λ10, dry, mat = 0.47 W / mK
FIRE RESISTANCE ACCORDING TO D.M. dated 02/16/2007: REI 120

TECHNICAL DATA ACCORDING TO UNI EN 998-2 STANDARD
COMPRESSION RESISTANCE TO 28 days EN 1015-11: M15 (15 N / mm²)
COEF. OF RESISTANCE TO PASS. OF THE VAPOR EN 1015-19: 5 <μ <20
ASSORB. WATER CAPILLARY EN 1015-18: > 0,50 Kg (m² • min⁰'⁵)
TYPE "I": ≤0,20 Kg (m² • min⁰'⁵)
THERMAL CONDUCTIVITY EN 1745: λ10, dry, mat = 0.47 W / mK
FIRE RESISTANCE ACCORDING TO D.M. dated 02/16/2007: REI 120

TECHNICAL DATA ACCORDING TO UNI EN 1504-3
COMPRESSION RESISTANCE TO 28 days EN 12190: 15 MPa (Class R1)
CONTENT OF ION CHLORIDE "C1": ≤ 0.5%
EN 1542 ADHERENCE BOND: ≥ 0.8 N / mm
