Thermal Insulation
Thermal insulation

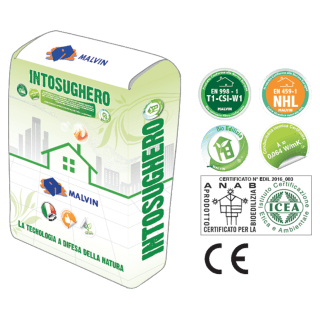

INTOSUGHERO
Eco-compatible certified Bio-mortar, fibered with a special fibre composition based on natural raw materials such as cork granules and natural hydraulic lime in NHL 3.5 according to EN 459-1 for thermal insulating screed. Sound absorbing and dehumidifying, both inside and outside also with the interposition of mats for the acoustic insulation of noise. to be applied on slabs, flat and inclined roofs, terraces, also for the formation of slopes etc. To be applied with plaster machine, continuous mixer, mixer by glass or by hand. It does not form barriers to steam and does not contain solvents. Recyclable as inert at the end of life.
Packaging:
50 lt sacks-55 sacks Footboards
Usage:
Indoor/outdoor
Color:
Hazelnut
Particle size:
≤ 3 mm
Yield:
1 bag for 1 sqm thickness 4 cm
Vapour-passage resistance coefficient EN 1015-19:
μ ≤ 5
Capillary water absorption EN 1015-18:
Class "W0"
Specific Heat EN 1745:1.00 kj/kg K
Certified Thermal conductivity:
λ = 0.068 W/MK *
Specific weight dry mortar:
400 Kg/MC
* Certification:
Certificate Institute LAPI S.p.A. N ° 366.2 DC 0050/12

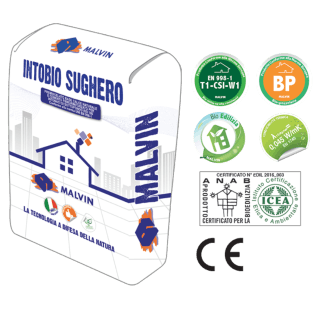

INTOBIO SUGHERO
Eco-compatible certified Bio-mortar, fibered with a special fibre composition based on natural raw materials such as cork granules and natural hydraulic lime in NHL 3.5 according to EN 459-1 for thermal insulating screed. Sound absorbing and dehumidifying, both inside and outside also with the interposition of mats for the acoustic insulation of noise. to be applied on slabs, flat and inclined roofs, terraces, also for the formation of slopes etc. To be applied with plaster machine, continuous mixer, mixer by glass or by hand. The characteristics of natural lime and bio-Pozzolan are such as to Guarantee a very slow and constant hydraulic hardening that allows to obtain screets with high durability and breathability. It does not form barriers to steam and does not contain solvents. Recyclable as inert at the end of life.
Packaging:
50 lt sacks-55 sacks Footboards
Usage:
Indoor/outdoor
Color:
White
Particle size:
≤ 3mm
Yield:
1 bag for 1 sqm thickness 4 cm
Vapour-passage resistance coefficient EN 1015-18:
μ ≤ 5
Capillary water absorption EN 1015-18:
Class "W0"
Specific Heat EN 1745:
1.00 kj/Kg K
Thermal conductivity EN 13813:
λ = 0.045 W/MK
Specific weight dry mortar:
400 Kg/MC

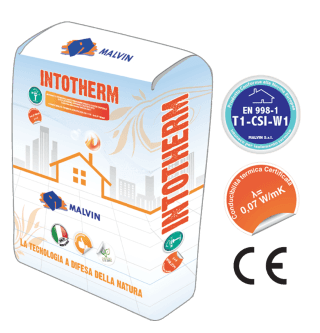

INTOTHERM
Pre-mixed lightened plaster, conforming to the minimum environmental criteria CAM. fibre-reinforced with a special composition of specially studied polypropylene fibres, based on hydraulic binders, expanded polystyrene beads and light mineral aggregates with High thermal insulation. for the realization of plasters with thermal insulating undercoats certified in internal and external and/or thermal protection on beams and pillars in reinforced concrete, for mechanical and manual application. Use as Intofin Flex or Intoras flex finish.
Packaging:
50 Lt Sacks-55 sacks Footboards
Usage:
Indoor/outdoor
Color:
Grey
Particle size: ≤ 5 mm
Yield:
1 bag for 1 sqm thickness 4 cm
Vapour resistance coefficient EN 1015-19:
μ = 9
Capillary water absorption EN 1015-18:
Class "W1"
Certified Thermal conductivity:
λ = 0.07 W/MK *
Specific weight dry mortar:
350kg/M
Minimum recycled/Recovered quantity:
≤ 10%
* Certification:
Politecnico di Bari certificate n ° 93/870
Complies with minimum environmental criteria (CAM) DM 11 october 2017 Point 2.4.2.9
INTOPERL
Fibro-reinforced plaster with a special composition of special polypropylene fibres with high thermal insulating power, based on hydraulic binders, light mineral aggregates, for plasters of internal and external thermoinsulating substrate and/or thermal protection on reinforced concrete beams and pillars, for mechanical and manual application. Use as Intofin Flex or Intoras flex finish.
Packaging:
In silos-13 kg sacks-60 sacks-7.80 Q.L.
Usage:
Indoor/outdoor
Color:
Grey
Particle size:
≤ 1.3 mm
Yield:
5/6 kg/mq per cm of thickness
Vapour-passage resistance coefficient EN 1015-19:
μ ≥ 6
Capillary water absorption EN 1015-18:
Class "W1"
Thermal conductivity EN 1745:
λ10, dry, mat = 0.09 W/MK
Specific weight dry mortar:
500kg/MC

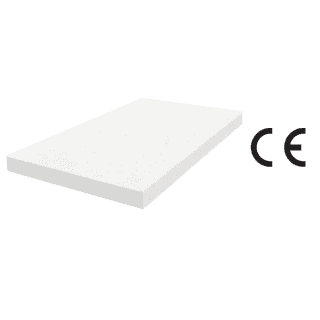

PORON B
Porous Expanded polystyrene slab Poron B BASF cut by straight edge block for thermal insulation in building. Product with CE marking.
Reference standard UNI EN 13163.
Slab Thickness:
From 20 to 200 mm
Slab size:
1000x500mm • 1000x600mm
Panel:
Cut slab from block to sharp edge
Poron B 034
Thermal conductivity declared Λd • EN 12667:
W/MK 0.034
Fire reaction EN 13501-1:
Euroclass E
Specific heat EN 10456 • C •:
J/kg • K 1350
Compression resistance to 10% crushing EN 826:
kPa ≥ 120
Tensile strength:
kPa ≥ 170
Poron B 033
Thermal conductivity declared Λd • EN 12667:
W/MK 0.033
Fire reaction EN 13501-1:
Euroclass E
Specific heat EN 10456 • C •:
J/kg • K 1350
Compression resistance to 10% crushing EN 826:
kPa ≥ 150
Tensile strength:
kPa ≥ 200
Poron B 032
Thermal conductivity declared Λd • EN 12667:
W/MK 0.032
Fire reaction EN 13501-1:
Euroclass E
Specific heat EN 10456 • C •:
J/kg • K 1350
Compression resistance to 10% crushing EN 826:
kPa ≥ 200
Tensile strength:
kPa ≥ 250

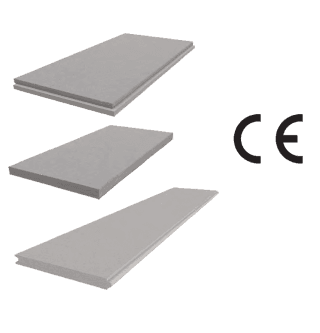

NEODUR 030 SB / SL / TA
NEOB BASF sintered Expanded polystyrene sheet with addition of printed graphite with high mechanical resistance available on a smooth edge type SL, with 4-sided batted SB type and all height with M/F joint on the 2 long sides SL type.
To be used for thermal insulation on roof roofs, floors, flat roof, cavity and ventilated facades.
Slab Thickness:
From 20 to 200 mm
Slab Size:
1000x600mm (SL/SB) • 2850x600mm (TA)
Panel:
Printed slab with sharp edge (SL) • Stamped plate (SB/TA)
Neodur SB/SL 030
Thermal conductivity declared Λd • EN 12667:
W/MK 0.030
Fire reaction EN 13501-1:
Euroclass E
Specific heat EN 10456 • C •:
J/kg • K 1350
Compression resistance to 10% crushing EN 826:
kPa ≥ 200
Neodur TA 030
Thermal conductivity declared Λd • EN 12667:
W/MK 0.030
Fire reaction EN 13501-1:
Euroclass E
Specific heat EN 10456 • C •:
J/kg • K 1350
Compression resistance to 10% crushing EN 826:
kPa ≥ 200

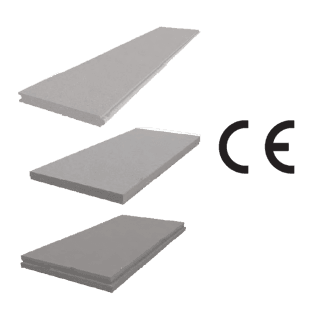

NEO 031 TA/SB/SL
Neo 031 TA neob BASF expanded polystyrene slab with addition of moulded graphite with M/F joint on the 2 long sides at full height. To be used for thermal insulation in the cavity. Product with CE marking. Reference standard UNI EN 13163.
Slab Thickness:
From 30 to 160 mm
Slab Size:
2850x600mm
Panel:
Printed plate with dimensionally
NEO TA 031
Thermal conductivity declared Λd • EN 12667:
W/MK 0.031
Fire reaction EN 13501-1:
Euroclass E
Specific heat EN 10456 • C •:
J/kg • K 1350
Bending resistance EN 12089:
kPa ≥ 125
Neo 031 SB/SL neob BASF sintered expanded polystyrene slabs with moulded graphite added available on a smooth edge type SL or batted on 4 sides type SB. To be used for thermal insulation on attic, cavity and ventilated façades and generally where high compressive resistances are not necessary. Product with CE marking. Reference standard UNI EN 13163.
Slab Thickness: From 30 to 200 mm
Slab Size: 1200x600mm
Panel: Printed slab with sharp edge (SL) • Stamped plate (SB)
NEO SB/SL 031
Thermal conductivity declared Λd • EN 12667: W/MK 0.031
Fire reaction EN 13501-1: Euroclass E
Specific heat EN 10456 • C •: J/kg • K 1350
Compression resistance to 10% crushing EN 826: kPa ≥ 100

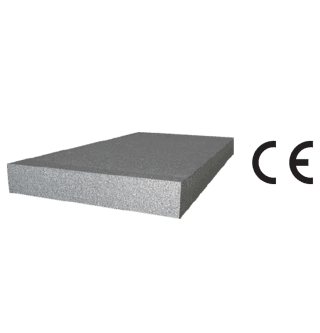

NEOB 030
NEOB BASF sintered Expanded polystyrene slab with addition of graphite cut from straight edge block for thermal insulation in building. Product with CE marking. Reference standard UNI EN 13163.
Slab Thickness:
From 30 to 160 mm
Slab size:
1000x500mm • 1000x600mm
Panel:
Cut slab from block to sharp edge
NEOB 030
Thermal conductivity declared Λd • EN 12667:
W/MK 0.030
Fire reaction EN 13501-1:
Euroclass E
Specific heat EN 10456 • C •:
J/kg • K 1350
Compression resistance to 10% crushing EN 826:
kPa ≥ 200

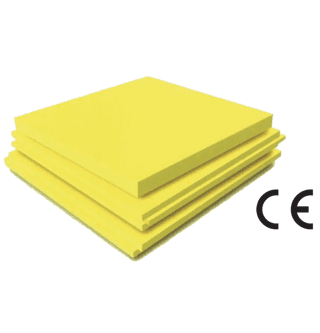

FIBROSTIR-R-RS-FL
Single layer thermal insulating sheets of yellow colour made of rigid foam of expanded polystyrene (XPS), formed by a closed cell foam thermoplastic polymer, for thermal insulation and used for many applications in Buildings, including: ceilings, refrigeration chambers, walls in Variable size and finish depending on the use.
Availability and Format panels
Fibrostir:
Smooth surface with extrusion skin
SV:
Sharp Edge 1250x600 mm • Thickness 20-140
B:
batted 4 sides 1250x600 mm • Thickness 30-120
MF:
M/F on long sides 2900x600 mm • Thickness 30-140
D4:
M/F on 4 sides 2500x600 mm • Thickness 30-140

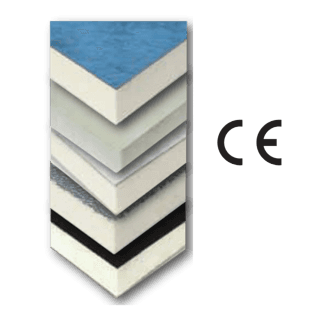

FIBROPIR
Thermal insulation panel consisting of a rigid polyiso foam with closed cells.
Available with coated on both sides and use:
Fibroduo:
With fibreglass glass for roofing and skimming. Available HD.
Fibrover:
With glass veil armor for roofs. Available HD.
Fibroplus:
With waterproof multi-layer A-Cell coating for wall and floor coverings.
Fibroalu:
With waterproof gas coating in 50 μm groffed aluminium for wall and floor coverings.
FIBROCOP:
Coated with bitumated cardboard for roofing and flooring.
FIBROCAP8:
With saturated glass veil armor specific for coat system
Fibroduo
Thickness: 30 to 120 mm
Thermal conductivity declared Λd • EN 12667: W/MK 0.024
Fire reaction EN 11925-2/13501-1: Euroclass F
Specific heat EN 10456 • C •: J/kg • K 1470
Compression resistance to 10% crushing EN 826: kPa 150 to 175/HD ≥ 200
Fibrover
Thickness: 20 to 120 mm
Thermal conductivity declared Λd • EN 12667: W/MK 0.024
Fire reaction EN 11925-2/13501-1: Euroclass F
Specific heat EN 10456 • C •: J/kg • K 1470
Compression resistance to 10% crushing EN 826: kPa 150 to 175/HD ≥ 200
Fibroplus
Thickness: 30 to 120 mm
Thermal conductivity declared Λd • EN 12667: W/MK 0.022
Fire reaction EN 11925-2/13501-1: Euroclass F
Specific heat EN 10456 • C •: J/kg • K 1470
Compression resistance to 10% crushing EN 826: KPa from 130 to 175
Fibroalu
Thickness: 30 to 120 mm
Thermal conductivity declared Λd • EN 12667: W/MK 0.022
Fire reaction EN 11925-2/13501-1: Euroclass F
Specific heat EN 10456 • C •: J/kg • K 1470
Compression resistance to 10% crushing EN 826: KPa from 150 to 175
Fibrocop
Thickness: 20 to 120 mm
Thermal conductivity declared Λd • EN 12667: W/MK 0.024
Fire reaction EN 11925-2/13501-1: Euroclass F
Specific heat EN 10456 • C •: J/kg • K 1470
Compression resistance to 10% crushing EN 826: KPa from 150 to 175
Fibrocap 8
Thickness: 20 to 120 mm
Thermal conductivity declared Λd • EN 12667: W/MK 0.024
Fire reaction EN 11925-2/13501-1: Euroclass E
Specific heat EN 10456 • C •: J/kg • K 1470
Tensile strength: KPa > 80
Compression resistance to 10% crushing EN 826: kPa 150
Sarnatherm PIR AL
Sarnatherm ® PIR AL is a rigid, closed-cell Polyiso expanded (PIR) thermal insulating panel with both sides coated with multi-layered metalized paper.
Uses
Sarnatherm ® PIR AL is specifically designed for thermal insulation of roofs in "hot roof" stratigraphies, at the lower surface of the synthetic waterproof mantle. Suitable for the following types of coverings: mechanical fixing system
Availability and Format panels
Appearance: rectangular panels with straight edges
Colors: Top and bottom face: Brown
Sizes: Available thicknesses: 20, 30, 40, 50, 60, 70, 80, 90, 100, 120 mm
Length x Width: 1,200 x 600 mm
Thermal conductivity declared λd en 12667/en 13165:0,023 W MK
Compression resistance to 10% crushing EN 826: ≥ 130 kPa
Sarnatherm PIR SB
Sarnatherm ® PIR SB is a rigid, closed-cell Polyiso expanded (PIR) thermal insulating panel with a top face coated with a bitumen glass veil and a glass bottom face.
Uses
Sarnatherm ® PIR SB is specifically designed for thermal insulation of roofs in "hot roof" stratigraphy, at the lower surface of the bituseal bituminous waterproof sheaths. Suitable for the following types of roofs: gravel ballast-exposed sheath, glued for the skimming
Availability and Format panels
Appearance: rectangular panels with straight edges
Colors:-Top face: Black-bottom face: Beige
Sizes: Available thicknesses: 30, 40, 50, 60, 70, 80, 90, 100, 120, 140, 160 mm
Length x Width: 1,200 x 600 mm
Thermal conductivity declared λd en 12667/en 13165:
0.028 W/M K (thickness from 30 mm to 70 mm)
0.026 W/M K (thickness from 80 mm to 100 mm)
0.025 W/M K (thickness from 120 mm to 160 mm)
Compression resistance to 10% crushing EN 826: ≥ 150 kPa
Sarnatherm PIR SB-HD
Sarnatherm ® PIR SB-HD is a rigid, closed-cell polyiso foam thermal insulation (PIR) panel with the upper face coated with a bitumen glass veil and the lower face in glass veil and high compressive strength.
Uses
Sarnatherm ® PIR SB-HD is specifically designed for thermal insulation of roofs in "hot roof" stratigraphs, at the lower surface of the bituseal bituminous waterproof sheaths. Suitable for the following types of roofs: gravel ballast-foot weight-ballast for the roof garden-exposed sheath, glued for skimming
Availability and Format panels
Appearance: rectangular panels with straight edges
Colors: Top and bottom face: Brown
Sizes: Available thicknesses: 20, 30, 40, 50, 60, 70, 80, 90, 100, 120 mm
Length x Width: 1,200 x 600 mm
Thermal conductivity declared λd en 12667/en 13165:
0.028 W/M K (thickness from 30 mm to 70 mm)
0.026 W/M K (thickness from 80 mm to 120 mm)
Compression resistance to 10% crushing EN 826: ≥ 200 KPa
Sarnatherm PIR VV
Sarnatherm ® PIR VV is a rigid, closed-cell polyiso foam thermal insulation (PIR) panel with both sides coated in glass veil.
Uses
Sarnatherm ® PIR VV is specifically designed for thermal insulation of roofs in "hot roof" stratigraphies, at the lower surface of the synthetic waterproof mantle. Suitable for the following types of roofs: gravel ballast-mechanical fixing system
Availability and Format panels
Appearance: rectangular panels with straight edges
Colors: top face and bottom face: Beige
Sizes: Available thicknesses: 30, 40, 50, 60, 70, 80, 90, 100, 120 mm
Length x Width: 1,200 x 600 mm
Thermal conductivity declared λd en 12667/en 13165:
0.028 W/M K (thickness from 20 mm to 70 mm)
0.026 W/M K (thickness from 80 mm to 120 mm))
Compression resistance to 10% crushing EN 826: ≥ 150 kPa
Sarnatherm PIR VV-HD
Sarnatherm ® PIR VV-HD is a rigid, closed-cell polyiso foam thermal insulation (PIR) panel with both sides coated in glass and high compression resistance.
Uses
Sarnatherm ® PIR VV-HD is specifically designed for thermal insulation of roofs in "hot roof" stratigraphies, at the lower surface of the synthetic waterproof mantle. Suitable for the following types of roofs: gravel ballast-foot weight-ballast for the roof-weighted garden mechanical fixing system
Availability and Format panels
Appearance: rectangular panels with straight edges
Colors: Top and bottom face: Brown
Sizes: Available thicknesses: 20, 30, 40, 50, 60, 70, 80, 90, 100, 120 mm
Length x Width: 1,200 x 600 mm
Thermal conductivity declared λd en 12667/en 13165:
0.028 W/M K (thickness from 30 mm to 70 mm)
0.026 W/M K (thickness from 80 mm to 120 mm)
Compression resistance to 10% crushing EN 826: ≥ 200 KPa

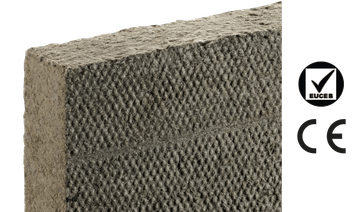

FIBRANGeo BT-30
Water-repellent rigid panel in biosoluble rock wool with semi-oriented fibres with nominal density-variable according to the thickness-110-150 kg/m3 (mean value 120 kg/m3), treated with thermosetting resins. The Fibrangeo BP-30 panel is CE marked according to Norm UNI EN 13162.
Fields of Employment:
Thermal and acoustic insulation of inclined roofs.
Availability and Format panels
Packaging: Panels in bundles on pallets
Dimensions: 600x1200 mm
Thermal conductivity (at 10°c): ʎD = 0.036 W/M K
Compressive strength: σmn = 30 KPa
Tensile strength (┴): MT ≥ 10 KPa

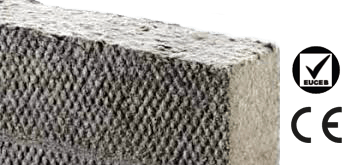

FIBRANGeo BT-40
Water-repellent rigid panel in biosoluble rock wool with semi-oriented fibres with nominal density-variable according to the thickness-equal to 130-150 kg/m3 and treated with thermosetting resins. The Fibrangeo BP-40 is CE marked according to Norm UNI EN 13162.
Fields of Employment
Thermal and acoustic insulation of flat roofs
Thermal and acoustic insulation of inclined roofs.
Availability and Format panels
Packaging: Panels in bundles on pallets
Dimensions: 600x1200 mm
Thermal conductivity (at 10°c): ʎD = 0.036 W/M K
Compression Resistance: Σmn = 40 KPa
Tensile strength (┴): MT ≥ 15 KPa
MALVIN | SNC, Strada Statale 7 Bis - 81030 Gricignano Di Aversa (CE) - Italia | VAT Reg No 02612581211 | Tel. +39 081 5029713 - Tel. +39 081 8132780 | Fax. +39 081 5029748 |
amministrazione@malvinsrl.com |
Legal
Information |
Privacy Policy and Cookie Policy
Designed by
|
Questa azienda è presente anche su
e
|
Questa azienda è presente anche su
e
